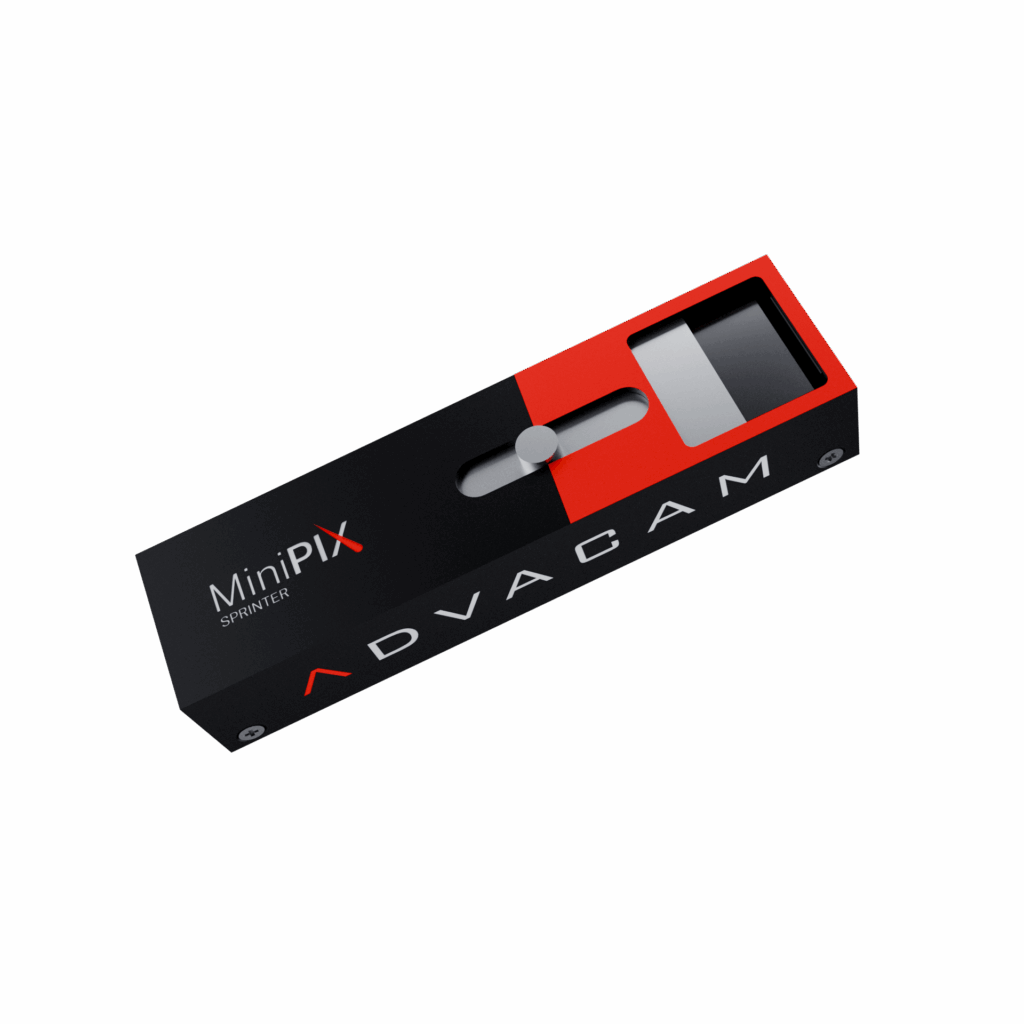

MiniPIX SPRINTER

A compact radiation detection solution combining high-speed imaging at up to 99 fps with upgraded new-gen Timepix technology. It offers versatility for various detection applications, from material analysis to the space industry or electron microscopy.

Request product

Sensor Material: Si

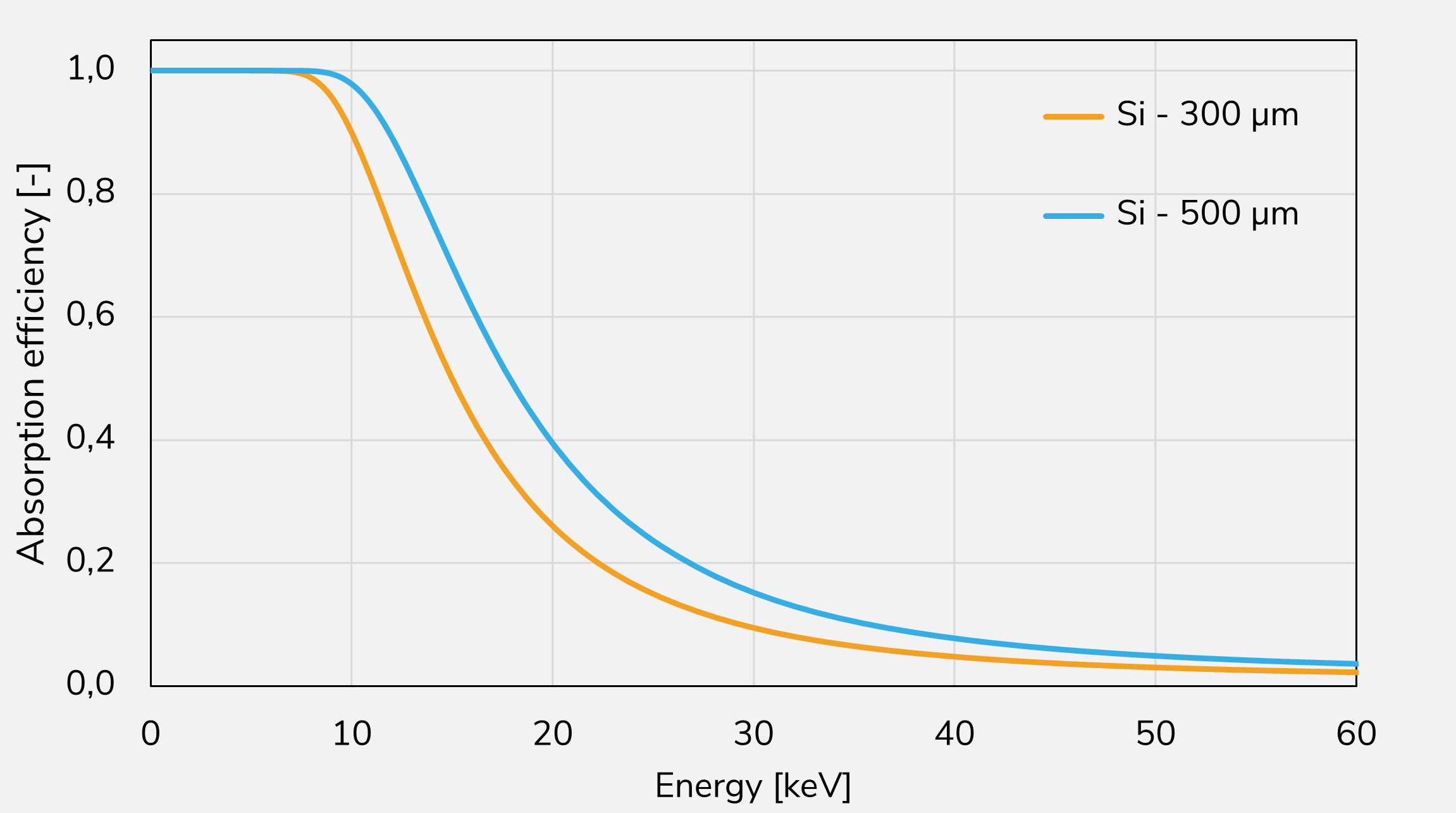

Sensor Thickness: 100 / 300 / 500 μm for Si
Sensitive Area: 14 mm x 14 mm
Time Resolution:
Readout Speed:
Max frame rate: 99 fps
Dark current none
Number of Pixels: 256 x 256 pixels
Pixel Pitch: 55 μm
Counter bit depth: 10/ 14/ 18 bit
Readout chip type: Timepix2 (new-gen)

Dimensions 80 x 21 x 14 mm
Weight 37 g
Interface: USB 2.0 (Full-Speed)
Software: PIXET PRO

The MiniPIX SPRINTER device is controlled via a USB interface and is compatible with major operating systems such as MS Windows, Mac OS, and LINUX. The system includes free software, PIXET PRO, for detector operation, offering comprehensive functionality and ease of use.

Product description

Compact, advanced, high-speed single-photon counting camera for versatile imaging and particle tracking solutions

MiniPIX SPRINTERA brand-new miniaturized, low-power radiation camera with a single new-gen Timepix chip.

The highest frame rate in its category: Up to 99 frames per second combined with extremely high stability. The signal-to-noise ratio exceeding 2,000 enables crystal-clear X-ray images with noise at 0.05 %.  The compact device measures a mere 80 x 21 x 14 mm and weighs just 37 grams.

The spectroscopic mode offers direct energy (wavelength) measurements in every pixel. The device boasts the best energy resolution for XRF & XRD. It has low power consumption and is capable of high-energetic particle tracking for space applications.

Main features:

  • Energy thresholding for multichannel X-ray imaging
  • Fully spectral radiation detection and particle tracking
  • Four multipurpose digital counters per pixel
  • Many modes of operation, including particle counting, per-pixel energy, and time measurement



Its compactness, performance and versatility allow for broad applicability:

  • X-ray imaging
  • Radiation monitoring and particle tracking
  • X-ray diffraction and X-ray fluorescence imaging
  • Space radiation monitors
  • Electron microscopy
  • Science and Education

The MiniPIX SPRINTER is controlled via a USB 2.0 interface and is seamlessly compatible with popular operating systems such as MS Windows, Mac OS, and LINUX. Included in the package is PIXET PRO software, designed for detector operation.

Space

Implemented on the International Space Station, NASA Artemis program, the Gateway Lunar Station or numerous satellites, our single particle detectors are revolutionizing space weather monitoring and radiation protection. Advacam's detectors ensure safer and more efficient missions. Because of their compact size and low-power consumption, these detectors excel in particle identification, energy measurement, and even determining the direction from which particles originate.
Show more

Non-destructive testing

Experience the power of our advanced cameras, delivering unmatched sensitivity, spatial resolution, and contrast. Our single-photon-counting cameras quickly uncover hidden details in various materials, from light composites to thick welded parts. The technology surpresses scattered radiation, capturing high quality images in record time. The capabilities of our photon-counting X-ray imaging unveil internal material structures and spot defects like porosity, fiber orientation, micro-cracks, and delaminations with unparalleled precision. Elevate your NDT with our industry-leading solutions, setting new standards in defect detection.
Show more

Material Analysis

Do you need to determine the material composition of your sample? Minerals, alloys, polymers, electronics, batteries, or pigments? Our cameras are based on cutting-edge single X-ray photon counting sensors, and each detected photon is processed individually. This approach also allows measuring the wavelength of photons. It brings unprecedented image quality and new possibilities, such as material-sensitive X-ray imaging. Moreover, our detectors enable fast and compact X-Ray Diffraction (XRD) and Crystallography solutions. XRD sample analysis is performed up to an order of magnitude faster than conventional systems. Spectral sensitivity provides a unique ability to inspect the sample surface and its interior (Energy dispersive XRD).
Show more

Biomedical

Cancer research, bio-mechanics, and drug testing are just a few examples of X-ray imaging contributing to biological and medical research. New photon-counting detectors represent a severe advancement to these applications compared to previously used methods. The energy sensitivity of modern cameras opens better possibilities for identifying individual types of tissue and contrast agents. That has significant consequences in various industries, for example in cancer research, where the tumor tissue can be better distinguished from the healthy one.
Show more

Others

ADVACAM offers cameras and solutions for multiple other applications, such as electron microscopy, crystallography, neutron imaging, localization of sources of ionizing radiation, charged particle tracking, and dosimetry for cancer therapy. In addition, many cameras are being used in basic research, such as at CERN's LHC accelerator, and for education on radiation and its properties in schools and universities.
Show more
