Do you need to determine the material composition of your sample? Minerals, alloys, polymers, electronics, batteries, or pigments? Our cameras are based on cutting-edge single X-ray photon counting sensors, and each detected photon is processed individually. This approach also allows measuring the wavelength of photons. It brings unprecedented image quality and new possibilities, such as material-sensitive X-ray imaging. Moreover, our detectors enable fast and compact X-Ray Diffraction (XRD) and Crystallography solutions. XRD sample analysis is performed up to an order of magnitude faster than conventional systems. Spectral sensitivity provides a unique ability to inspect the sample surface and its interior (Energy dispersive XRD).

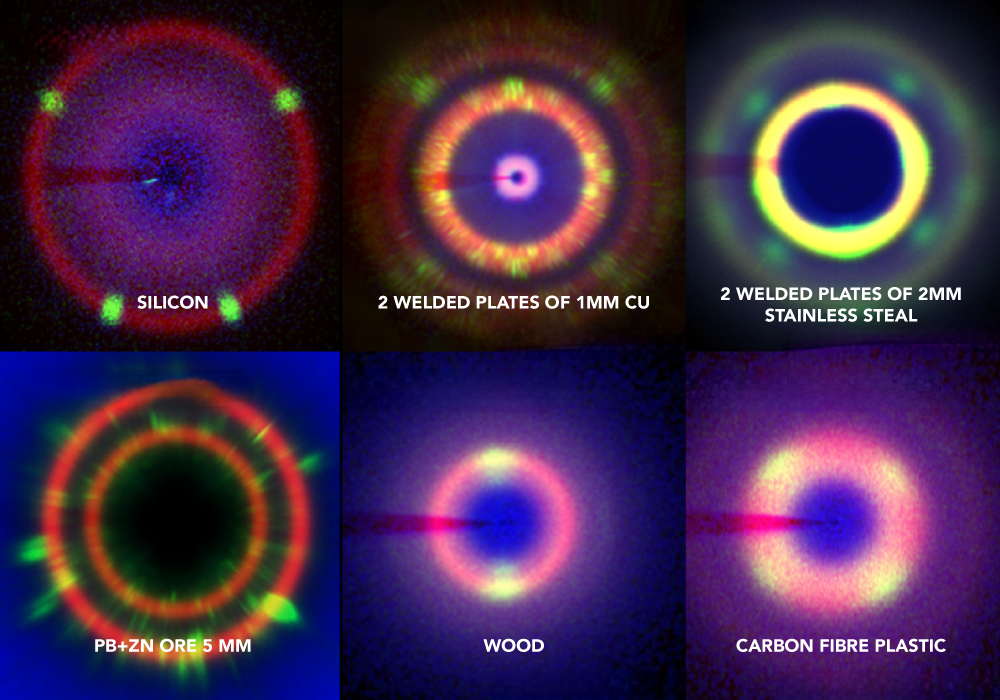

The XRD measurements performed in transmission mode (X-ray beam penetrates through the sample, detector is placed behind of it) with polychromatic X-ray beam of 160 kVp. Anisotropic scattering patterns indicate presence of texture in the sample structure. Color coding in these images shows powder signal in red, reflections from larger crystals in green and mean energy in blue. An AdvaPIX camera was used to create this image.

The XRD measurements performed in transmission mode with polychromatic X-ray beam of 160 kVp.

$ADVACAM Material Analysis: X-RAY DIFFRACTION AND CRYSTALLOGRAPHY: The basic principle of the "Energy Dispersive X-ray Diffraction" (EDXRD) in transmission geometry: The spectral sensitivity of our detectors enables us to record dozen of images during a single measurement. Each image corresponds to a single wavelength. This way all primary energies contribute to the final XRD image instead of being lost in the monochromator. The measurement is, therefore, significantly faster (Circa 100x).$

The basic principle of the "Energy Dispersive X-ray Diffraction" (EDXRD) in transmission geometry: The spectral sensitivity of our detectors enables us to record dozen of images during a single measurement.

X-RAY DIFFRACTION AND CRYSTALLOGRAPHY

X-ray diffraction is an analytical method based on the inspection of the crystalline structure of samples. Applications can be found in Metallurgy, Mineralogy Powders, Pigments, Polymers Surface layers, or Strain mapping. Our spectral imaging detector is the key to the next level of material analysis.

The traditional XRD uses monochromatic X-rays, which make the apparatus large and slow. ADVACAM’s spectral camera, based on a Timepix3 chip with high resolution, makes it fast and compact. Instead of taking a single diffraction image accumulating all X-ray energies (wavelengths) into a single image as performed in the traditional XRD apparatus, we record about 150 images at once. One picture for each energy channel. Due to this enhancement, the system operates at a speed two orders of magnitude faster than conventional XRD systems.

The high-resolution detector can be placed close to the sample covering a large solid angle, leading to fast data accumulation. Moreover, our cameras can handle a broad energy range (3 – 150 keV). Therefore, even heavy samples, including stainless steel, heavy metals, and minerals, can be transmitted.

X-RAY FLUORESCENCE: DISTINGUISH ELEMENT COMPOSITION INSTANTLY

Achieve speed, precision and accuracy with full spectra XRF analysis on every pixel.

X-ray fluorescence (XRF) is a vital non-destructive analytical technique applied in various fields for determining the elemental composition of materials. X-ray fluorescence detection uses a primary X-ray source to excite the atoms within a sample. This excitation causes the atoms to emit fluorescent (or secondary) X-rays. The emitted X-rays are specific to each element present in the sample, akin to a unique fingerprint for that element.

ADVACAM’s Timepix 3 cameras with Si or CdTe sensor allow the measurement of full spectra for each pixel. Measured spectra can then be analyzed, and particular elements can be separated according to their X-ray fluorescence energies. For instance, this approach is demonstrated on the sample of a printed circuit board, where the components are very well spatially separated. Similarly, the method was proven to be able to distinguish metals contained in a rock. The suitability for Real-Time Mineral X-Ray Analysis was proved within the EU Horizon 2020 X-MINE project.

ADVACAM Material Sensitive X-ray fluorescence

XRF of particular elements and joint image of a printed circuit board (PCB) sample. Each color represents an element: Red – Cu, green – Sn, cyan – Nb, magenta – Pd, yellow – Br, blue – Ba, white – Ta).

ADVACAM X-ray fluorescence: Spectra of selected regions on PCB image. XRF peaks of particular elements can be well recognized (left: Kα of Cu, Br, Nb, Pd, Sn, Kα and Kβ of Ba; right: Kα and Kβ of Ta).

Spectra of selected regions on PCB image. XRF peaks of particular elements can be well recognized (left: Kα of Cu, Br, Nb, Pd, Sn, Kα and Kβ of Ba; right: Kα and Kβ of Ta).

ADVACAM XRF Material Analysis: The XRF method was used for the sliced rock samples. Red – Zn, green – Pb, blue – waste material. Result was achieved using Timepix 3 detector with CdTe sensor.

The XRF method was used for the sliced rock samples. Red – Zn, green – Pb, blue – waste material. Result was achieved using Timepix 3 detector with CdTe sensor.

XRF of particular elements and joint image of pigments on a painting.

XRF of particular elements and joint image of a printed circuit board (PCB) sample taken by an AdvaPIX TPX3 Camera.

Partially quenched steel sample: The quenching level was measured in 7 points, as shown in the graph. At every point, the level of quenching can be determined.

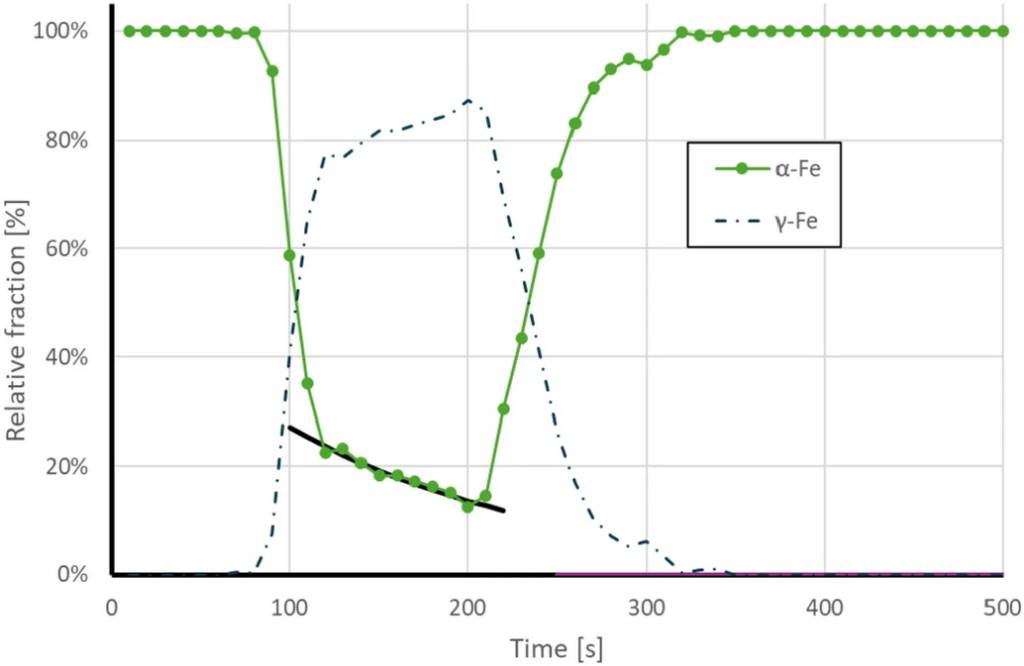

XRD IN-DEPTH QUENCHING AND WELD INSPECTION

Quenching alters the inner structure of a metal, leading to improved mechanical properties. Inspecting a quenched material with X-ray diffraction can provide valuable information about the effectiveness of the quenching process, the presence of different phases, residual stresses, and crystallographic textures, helping to optimize material properties.

Traditional X-ray Diffraction methods employed for quenching inspection use low-energy monochromatic X-rays that cannot penetrate the sample volume. This way, just the sample surface is inspected. To inspect the material’s volume, harder X-ray radiation is necessary. Utilizing our energy-sensitive detectors, we can measure the X-ray wavelength, eliminating the need for monochromatic X-rays. Through software post-processing, a diffractogram image of the entire volume can be generated. Simultaneously, our method is approximately 100 times faster, as it takes advantage of the full spectrum.

In the context of quenching or weld inspection, we can determine the crystallographic structure of the metallic sample throughout its entire depth. XRD can identify various phases present in the quenched material, such as retained austenite, martensite, or precipitates, allowing for an assessment of the quenching process’s effectiveness and optimization of heat treatment parameters. Quenching can induce preferred orientations or “textures” within the material’s crystal structure. XRD can characterize these textures, significantly impacting the material’s mechanical properties and performance.

XRD MINERAL MAPPING

Imagine the ability to create detailed maps of ore distribution within a piece of rock in almost real time. Now, envision pinpointing the precise locations of valuable substances such as gold, silver, zinc, or copper, not just on the surface but throughout the entire volume of the mineral. This is precisely what our cutting-edge X-Ray Diffraction (XRD) solutions can achieve.

Our advanced single-particle counting cameras, combined with Energy Dispersive X-ray Diffraction (EDXRD) technology, allow for rapid scanning of the entire volume of a mineral sample within milliseconds. For example, a point in a 5 mm thick piece of rock can be examined in just 10 milliseconds.

Rapid mineral mapping significantly reduces the time required for sample analysis, leading to substantial cost savings and faster decision-making in exploration and mining operations. For example: Thanks to this approach, we can differentiate valuable Zn+Pb compounds and invaluable waste.

$ADVACAM Material Analysis: XRD MINERAL MAPPING - examined 5mm thick peace of mineral. The diffractograms in this image visualize different materials inside the examined 5mm thick peace of mineral. The AdvaPIX TPX3 CdTe camera was used to make the measurements.$

The diffractograms in this image visualize different materials inside the examined 5mm thick peace of mineral.

FPGA circuit board visualized by our material sensitive X-ray technology compared to traitional grayscale X-Ray image. The yellow color identifies the solder; tantalum capacitors are pink, and many other colors regarding other present materials. The image was done by WidePIX 5×5 CdTe detector (60 kVp, 3 energy channels at (7, 20 and 35 keV)

Various elements visualized by color x-ray radiography compared to traditional black and white x-ray imaging. In common grayscale X-ray images, some materials may appear at the same grey level even if they have an entirely different elemental composition. These differences are visible thanks to multichannel X-ray imaging.

The spectral X-ray imaging was evaluated using Radalytica robotic X-ray scanner that integrates Widepix 1×5 MPX3 CdTe detector. The scanner essentially extends the Widepix sensitive area from 70×14 mm2 to an area of up to 600×1200 mm2.

MATERIAL-SENSITIVE X-RAY INSPECTION

Our energy-sensitive X-ray cameras enable color radiography images to visualize different materials in your sample. Our multichannel imaging can be utilized for circuit board inspection, ore quality identification, and numerous other applications.

In the image, there is an FPGA circuit board visualized by our material-sensitive X-ray technology compared to a traditional grayscale X-Ray image. The yellow color identifies the solder; tantalum capacitors are pink, and many other colors regarding other present materials.

REVOLUTIONARY ORE QUALITY IDENTIFICATION

Our energy-sensitive spectral X-ray cameras facilitate color radiography images, visualizing different materials within your sample. Our multichannel imaging can be employed for cutting-edge real-time ore quality identification on operational conveyor belts in mines.

Our material-sensitive imaging detectors can be calibrated to exhibit sensitivity toward specific chemical elements or compounds, which can be harnessed for ore quality identification. This confirms the presence of valuable metals, such as copper, iron, or zinc, in ore samples.

This approach offers unique applications in the mining industry. With the Time-Delayed Integration mode (TDI), our cameras can help sort the ore by quality on fast-moving conveyor belts in real time. The TDI mode captures images of moving objects at low radiation intensity levels. The architecture of the detector read-out-chip allows a shift of the pixel matrix along columns. Shifts are synchronous with the object’s movement. TDI mode is used together with multi-energy X-ray imaging.

As part of the European Union Horizont 2020 X-MINE project, a high-resolution, high-speed X-ray camera designed for large scans and conveyor belts was developed and tested under extreme, real-world mining conditions. The ore is sorted right after X-Ray inspection on the conveyor belt moving beneath the camera at speeds of up to 5m/s. This method ensures that only valuable rocks containing significant amounts of ore are processed while the rest of the material is removed from further processing.

The microstructure and the ore decomposition within the inspected sample rock are also visualized. It plays a significant role in proper mineral identification. The rock’s granularity, crystal orientation, and veins can be specified.

This solution is both cost-effective and environmentally friendly, as it reduces the energy and chemicals needed for further ore processing. This approach led to approximately 20% savings in water, chemicals, energy, waste, and overall costs in actual mine conditions.

ADVACAM Ore quality identification: Multiple X-ray transmission images are taken with different energy sensitivity (threshold). Each transmission scan is converted to an equivalent thickness of reference material (e.g., aluminum). Different materials in a sample show different spectral dependencies. If the actual imaged material equals the reference one, then both images show the same equivalent thickness.

Multiple X-ray transmission images are taken with different energy sensitivity (threshold). Each transmission scan is converted to an equivalent thickness of reference material (e.g., aluminum). Different materials in a sample show different spectral dependencies. If the actual imaged material equals the reference one, then both images show the same equivalent thickness.

$Examples of measurements with Timepix detectors utilized by our spin-off company AdvaScope. On the left side: An EBSD diffraction pattern of Nickel. On the right: A diffraction pattern measured for the Si sample aligned to [100] zone axis. Below: An example of an implementation of a Timepix3 detector together with the retraction device that has been installed on a TEM. The external electronics are located and attached to the casing. It is connected via a PCB feedthrough to the vacuum chamber.$

On the left side: An EBSD diffraction pattern of Nickel. On the right: A diffraction pattern measured for the Si sample aligned to [100] zone axis.

NOISELESS AND FAST ELECTRON MICROSCOPY

Our single-photon counting detectors provide a highly sensitive solution for electron microscopy. In addition to its high sensitivity, it can accurately determine each electron’s position, time of impact, and energy. These unique attributes enable generating noiseless and clear images at thousands of frames per second.

With a time resolution in the nanosecond range, the technology can record processes that occur exceptionally quickly within samples. This opens up new opportunities for conducting experiments that were previously unfeasible.

Utilized by our spin-off company AdvaScope, the TimePix3 camera is accommodated in various applications, including 4D Scanning Transmission Electron Microscopy (STEM) in SEM/TEM, Micro Electron Diffraction (µED), Electron Backscatter Diffraction (EBSD), Electron Energy Loss Spectroscopy (EELS), Micro/nano Computed Tomography (CT) or Ptychography.
