Unlock the full power of CT inspection with photon-counting cameras

The WidePIX photon-counting camera by ADVACAM directly processes individual detected photons during measurement. It offers multiple energy thresholds for material decomposition, clearer resolution, and higher contrast images. This together with highly efficient sensors allows you to use as low or high flux as you need and uncover inner structures. without the image getting too dark or too bright.  The camera is powered and communicates over ethernet making its integration into a CT scanner simple.

Upgrade your CT machine and detect cracks, porosity, delamination, and other defects more effectively. Inspect critical areas such as welds or material joints in more detail.

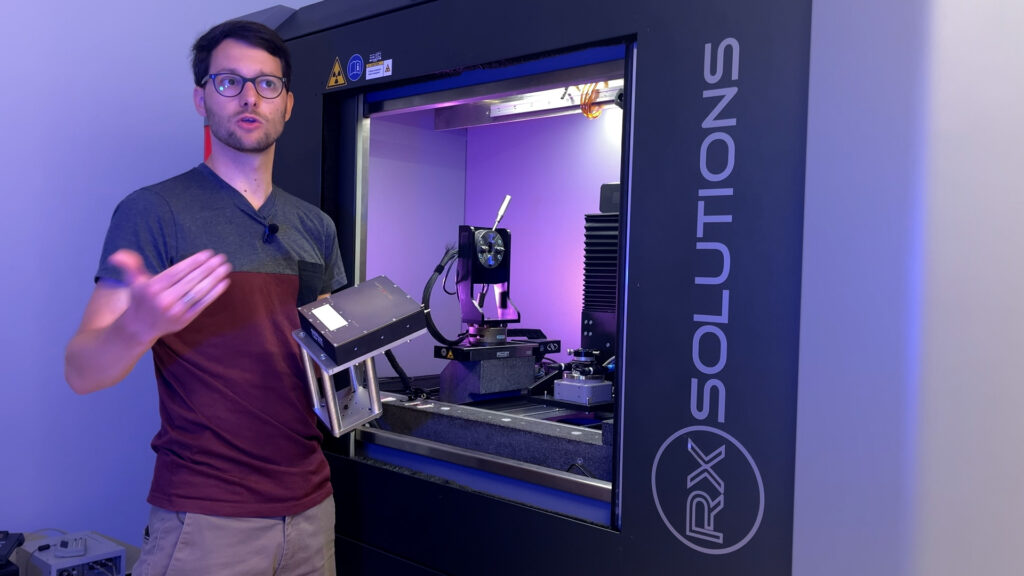

Watch a story how researchers at the CT Research Group of the University of Applied Sciences Upper Austria have now showcased an industrial RX Solutions CT, combined with our WidePIX MPX3 camera. Apart from research projects, they also offer custom inspection of small samples for the public.



Review the samples mentioned in the video bellow:



Foot bones phantom with magnesium biodegradable implant. Taken with WidePIX MPX3 2×5 with CdTe sensor.
X-ray voltage 100 kVp
X-ray current 0.15 mA
Detector exposure time 0.2 s
Detector energy threshold 10.3 keV
Source-object distance 150 mm
Object-detector distance 100 mm
Voxel size full foot 200 𝜇m
Voxel size implant scan 170 𝜇m

I want similar results



Porosity cube made of aluminium. Taken with WidePIX MPX3 2×5 with CdTe sensor.
X-ray voltage 100 kVp
X-ray current 0.15 mA
Detector exposure time 0.2 s
Detector energy threshold 10.3 keV
Source-object distance 180 mm
Object-detector distance 80 mm
Voxel size 100 𝜇m

I want similar results



Titanium 3D printed part. Taken with WidePIX MPX3 2×5 with CdTe sensor.
X-ray voltage 100 kVp
X-ray current 0.15 mA
Detector exposure time 0.1 s
Detector energy threshold 10.3 keV
Source-object distance 130 mm
Object-detector distance 130 mm
Voxel size 70 𝜇m

I want similar results



Bone phantom. Taken with WidePIX MPX3 with silicon sensor.
X-ray voltage 100 kVp
X-ray current 0.15 mA
Detector exposure time 0.3-3.5 s
Detector energy threshold 5 – 30 keV, step 5 keV
Source-object distance 150 mm
Object-detector distance 100 mm
Voxel size 200 𝜇m

I want similar results

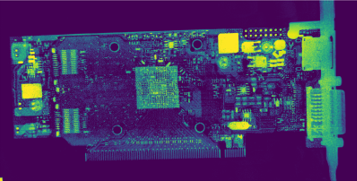

PCB sample taken with WidePIX MPX3 1×5
X-ray voltage 100 kVp
X-ray current 0.15 mA
Detector exposure time 1-5 s
Detector energy threshold 5 – 30 keV, step 5 keV
Source-object distance 240 mm
Object-detector distance 60 mm

I want similar results




Our detectors offer a variety of imaging methods, such as material-sensitive spectral scan, 2D X-ray imaging, 3D imaging, tomosynthesis, X-ray diffraction, backscattering and many combinations of these. Thanks to the time-delay integration implemented in the WidePIX detectors, the device can be integrated into inline inspection systems inspecting objects for instance on conveyor belts. Even large samples can be scanned without the need to dismantle or cut them.

For samples too large to fit into a standard industrial CT, consider using robotic scanner RadalyX. RadalyX is a flexibile and portabile scanner that offers an inspection solution for practically any size and shape of objects.



Learn more about robotic CT
