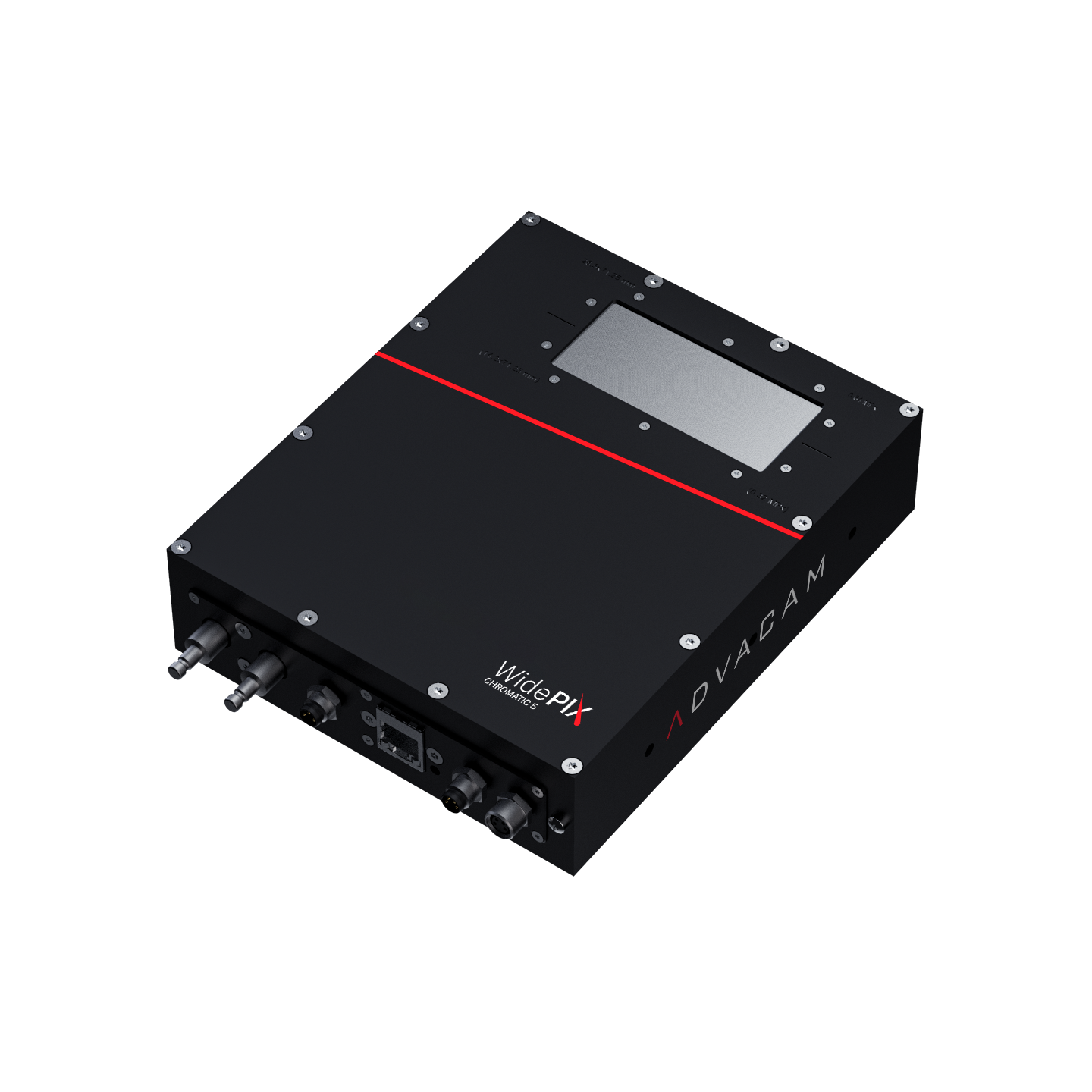

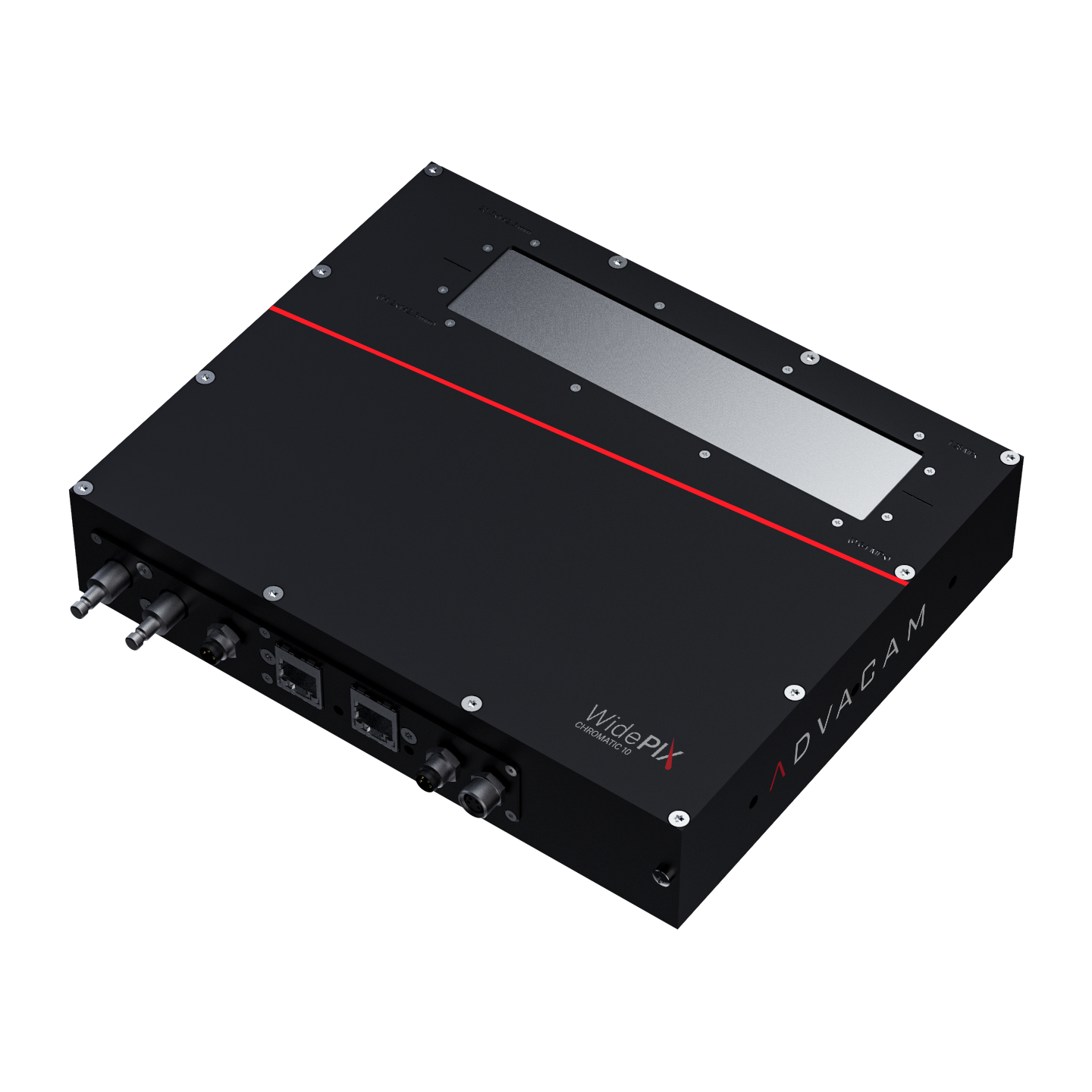

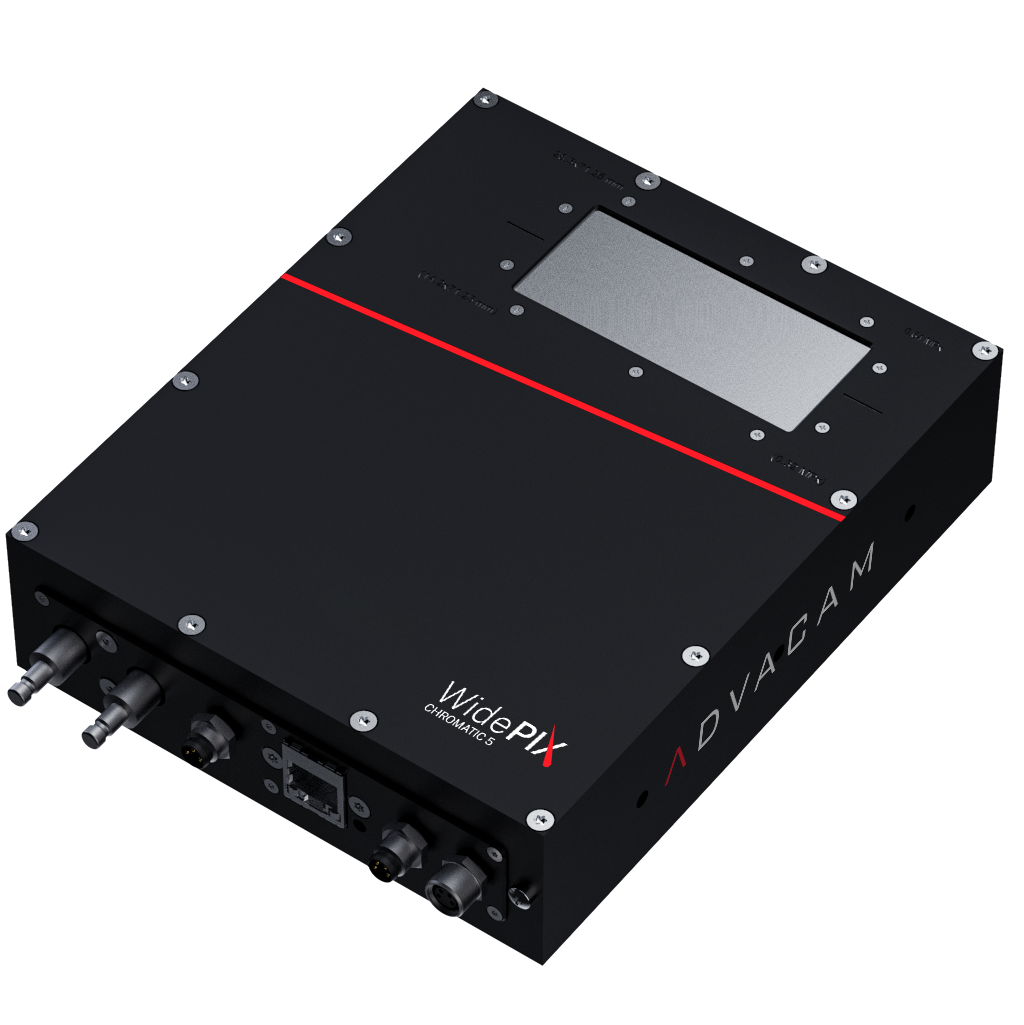

A multi-chip x-ray imaging detector with the ability to provide spectral material-sensitive “color radiography “. It suits industrial devices such as CT scanners and supports hardware-based Time-Delayed Integration. The camera is equipped with Medipix3 photon-counting chips.
| Readout chip: | Medipix2 |
| Pixel pitch: | 55 μm |
| Resolution: | 9 lp/mm |
| Readout speed: | up to 170 fps |
| Thresholds per pixel: | up to 2 |
| Threshold step: | 0.1 keV |

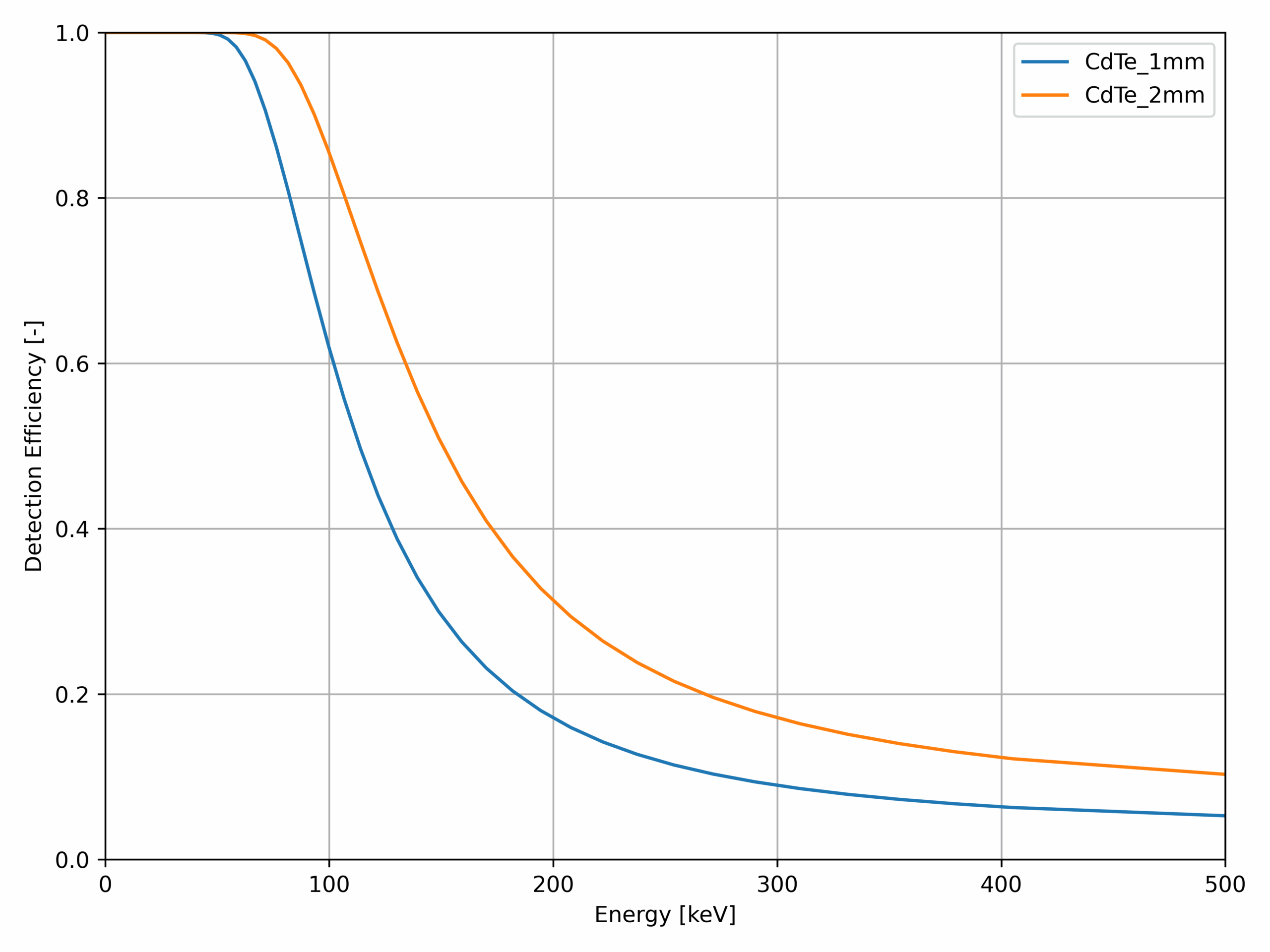

| Energy Resolution: | 0.7-2 keV (Si) and 1.2-3.6 (CdTe) |
| Minimum Detectable Energy: | 5keV(Si), 8keV (CdTe) |
| Counter depth: | 12 or 24 bits (configurable) |
| Dimension: | 213 x 60 x 40 mm |
| Weight: | 1800 g |
| Connectivity: | Ethernet |
| Software: | PIXet Pro |
Product description

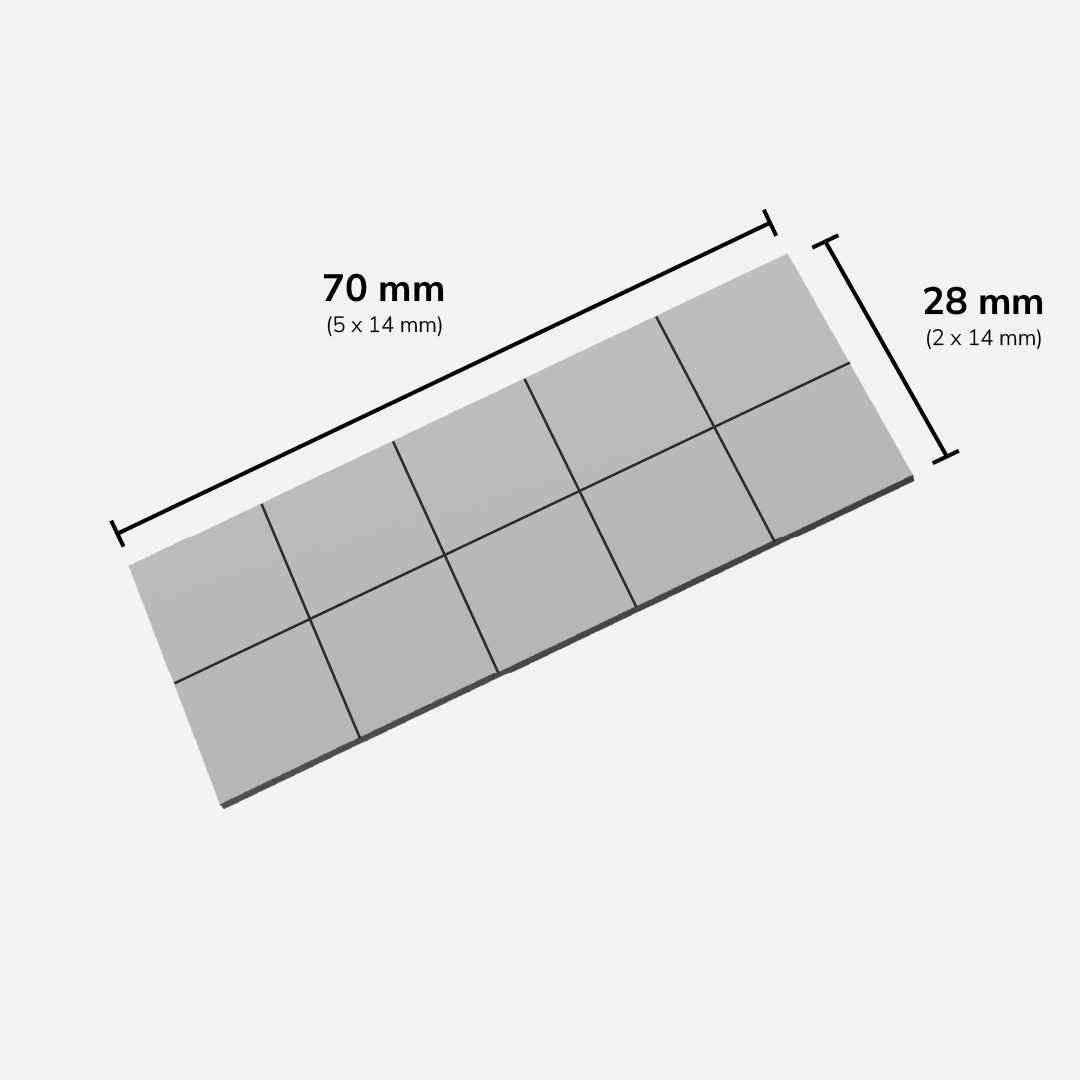

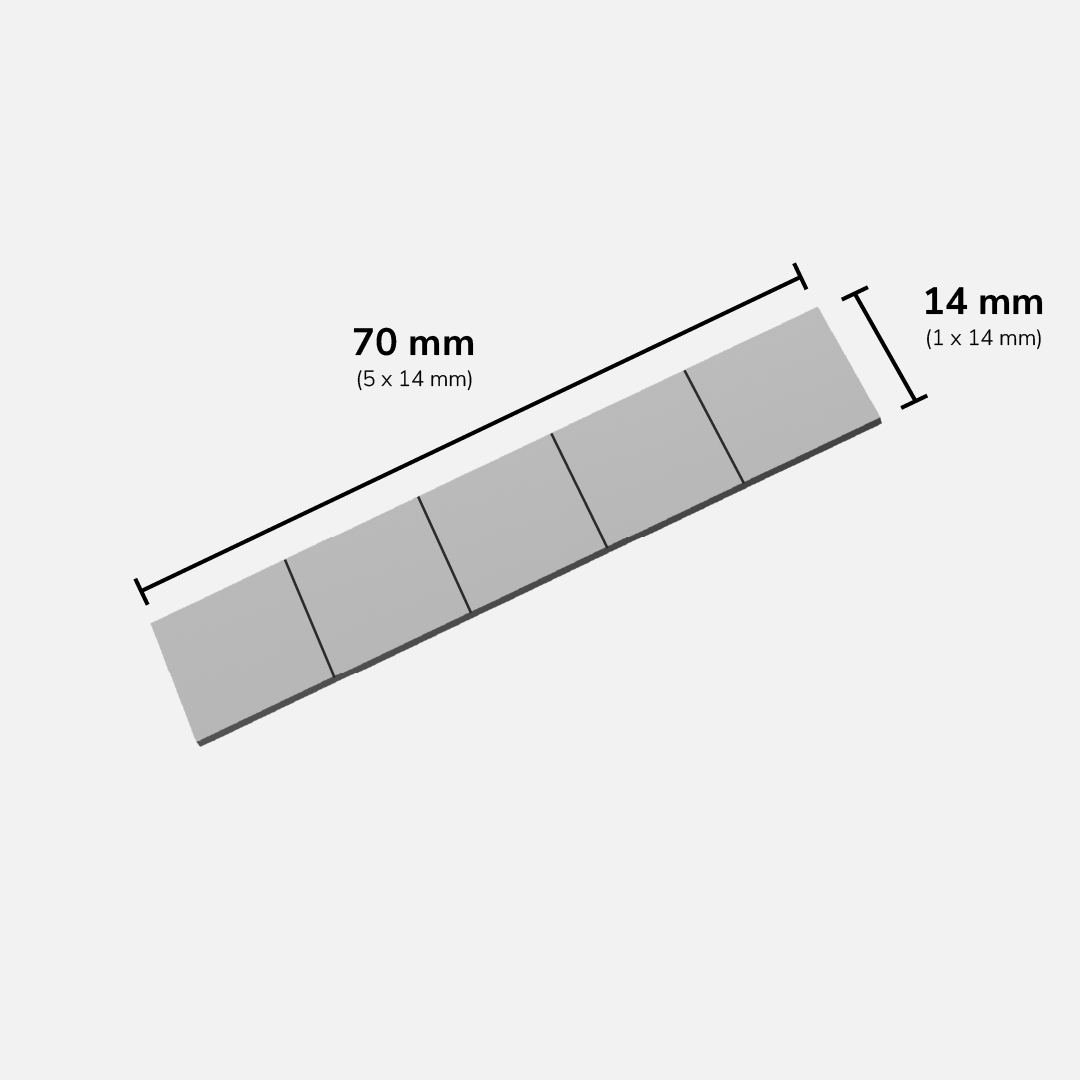

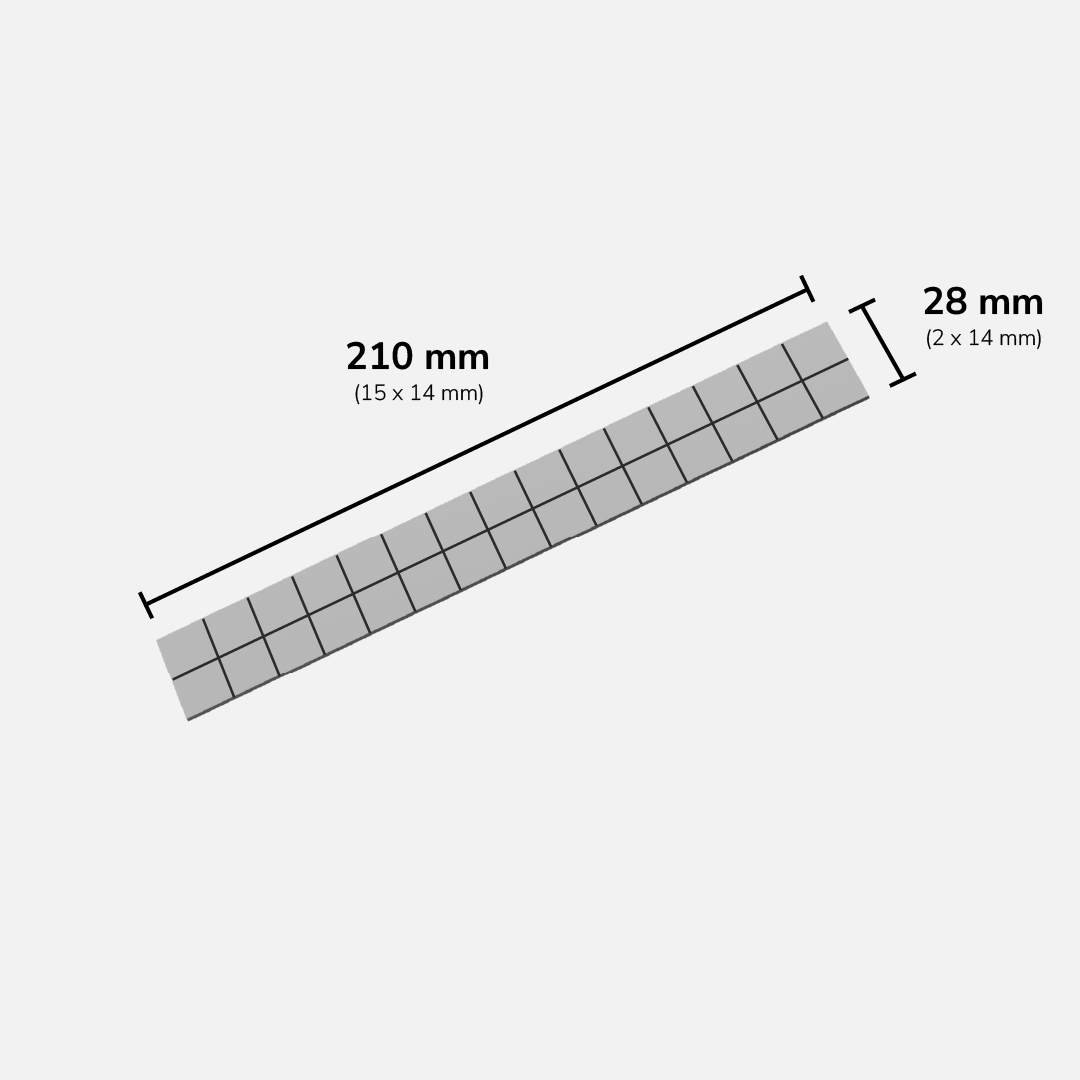

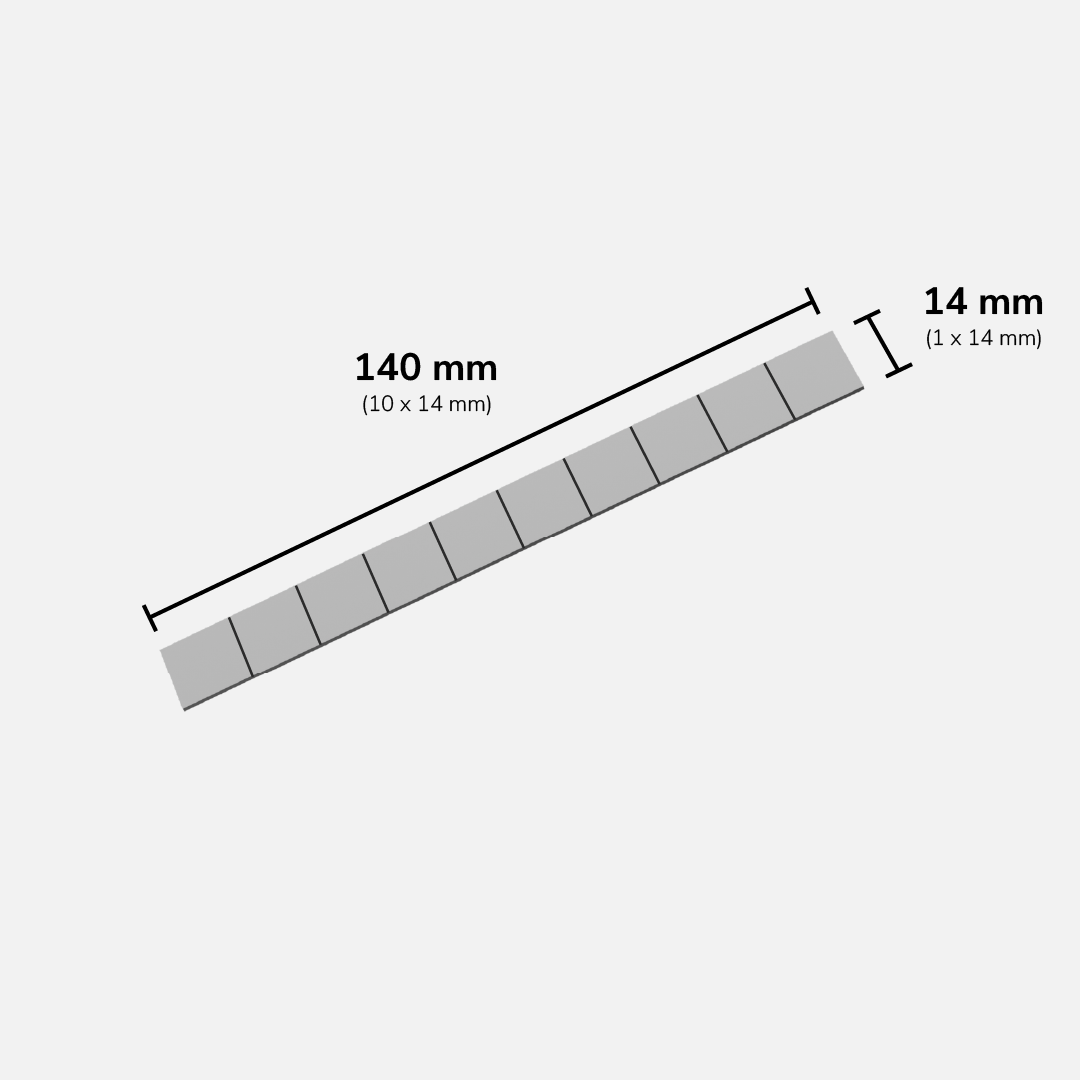

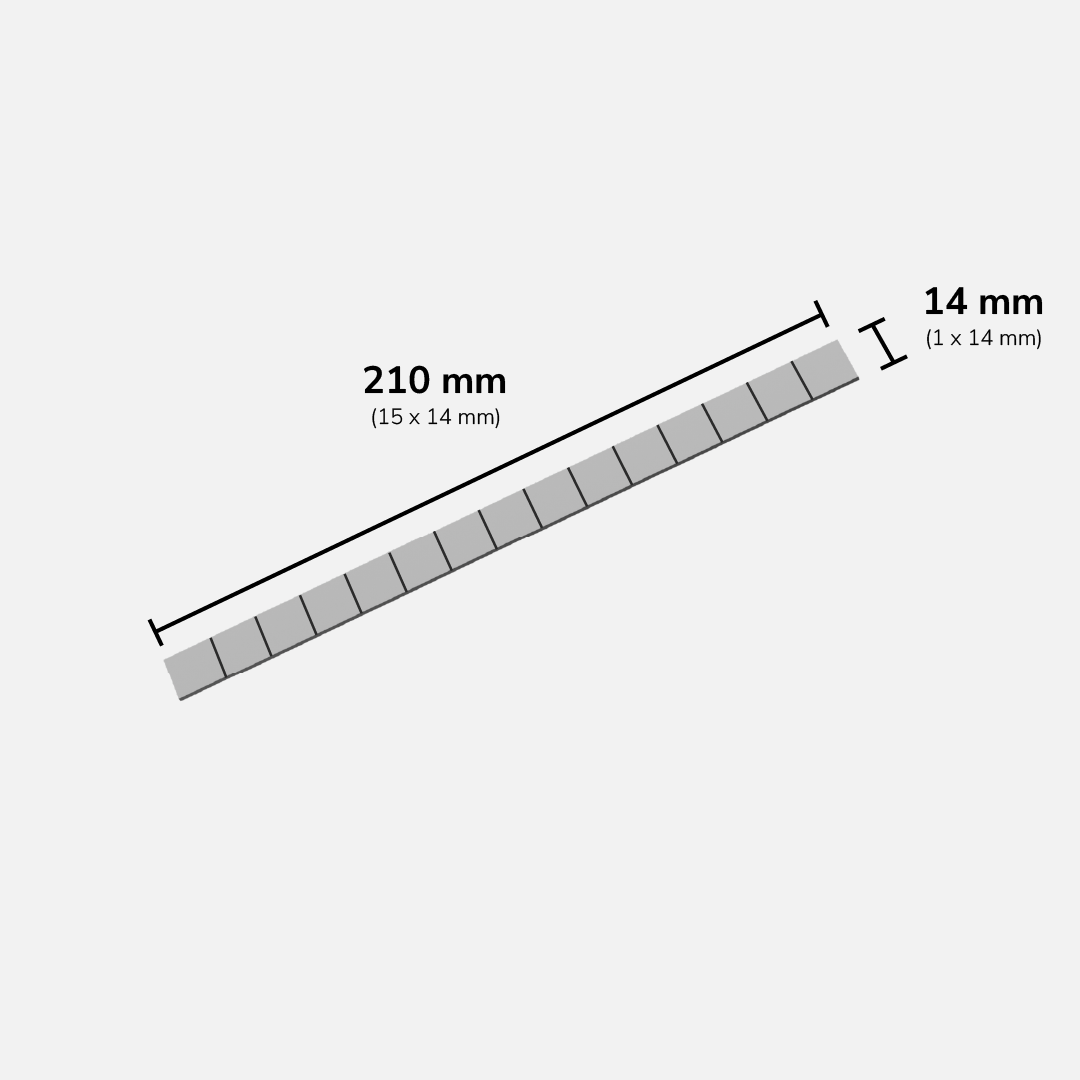

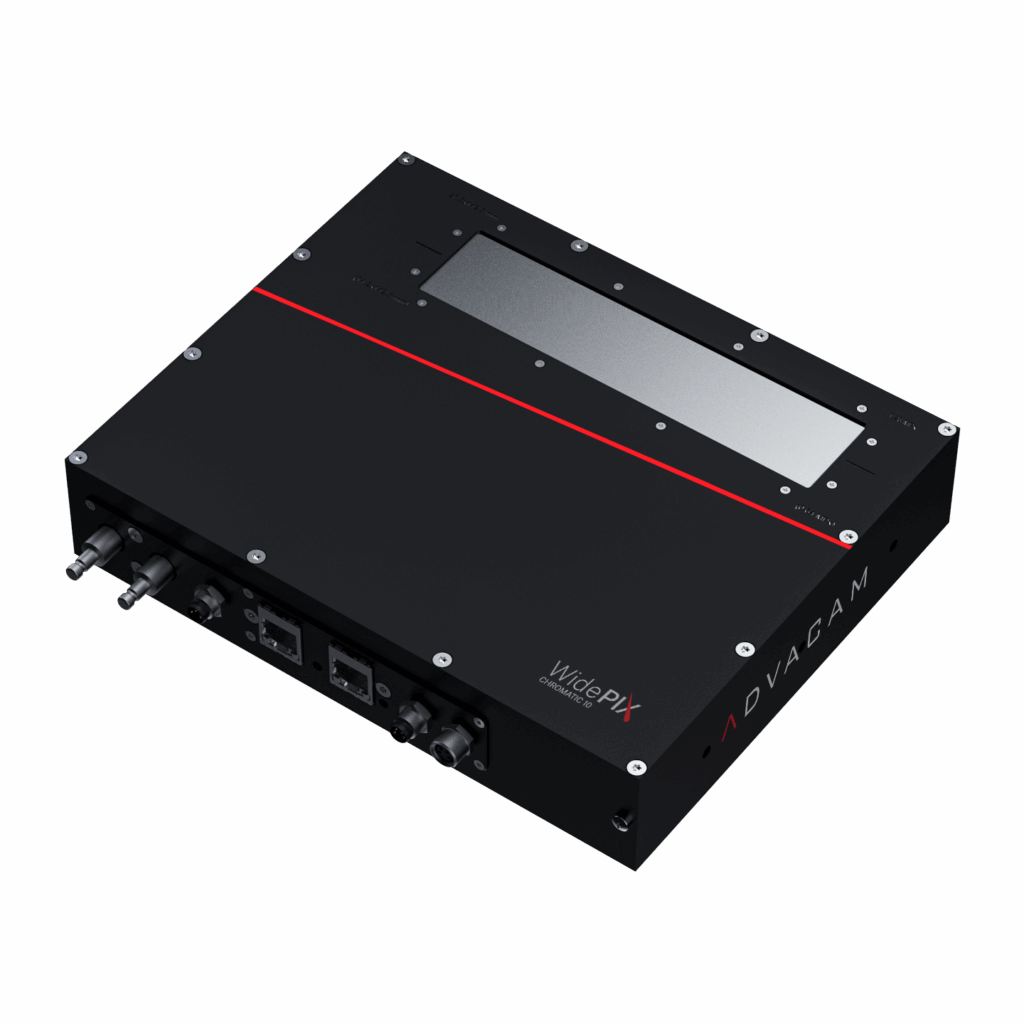

The large area imaging detector WidePIX CHROMATIC is composed of Medipix2 hybrid detector electronics tiles. Each tile (256 x 256 pixels) is attached to a silicon or cadmium telluride sensor. Therefore, the whole detection area of the WidePIX CHROMATIC is fully sensitive, and there are almost no gaps (less than 4 pixels) between sensor tiles.
Each pixel has two integrated 12-bit digital counters and two energy discrimination thresholds. The counters store number of registered particles, with the possibility to set desired energy threshold. Both counters can be joined to a single 24-bit counter, providing enhanced dynamic range.
The particle counting principle eliminates any additional noise generated by the sensor or electronic readout. It allows for acquiring X-ray images with very high contrast and wide dynamic range. Therefore, even low-contrast structures such as plastic or soft tissue are easily detectable in X-ray images.
The energy discrimination thresholds of Medipix3 technology allow spectral X-ray imaging. Different materials in an inspected sample could be then identified based on their spectral X-ray attenuation properties. Energy spectra could be measured typically from 5 keV upwards.
The WidePIX CHROMATIC is suitable for CT scanners, because it combines:
