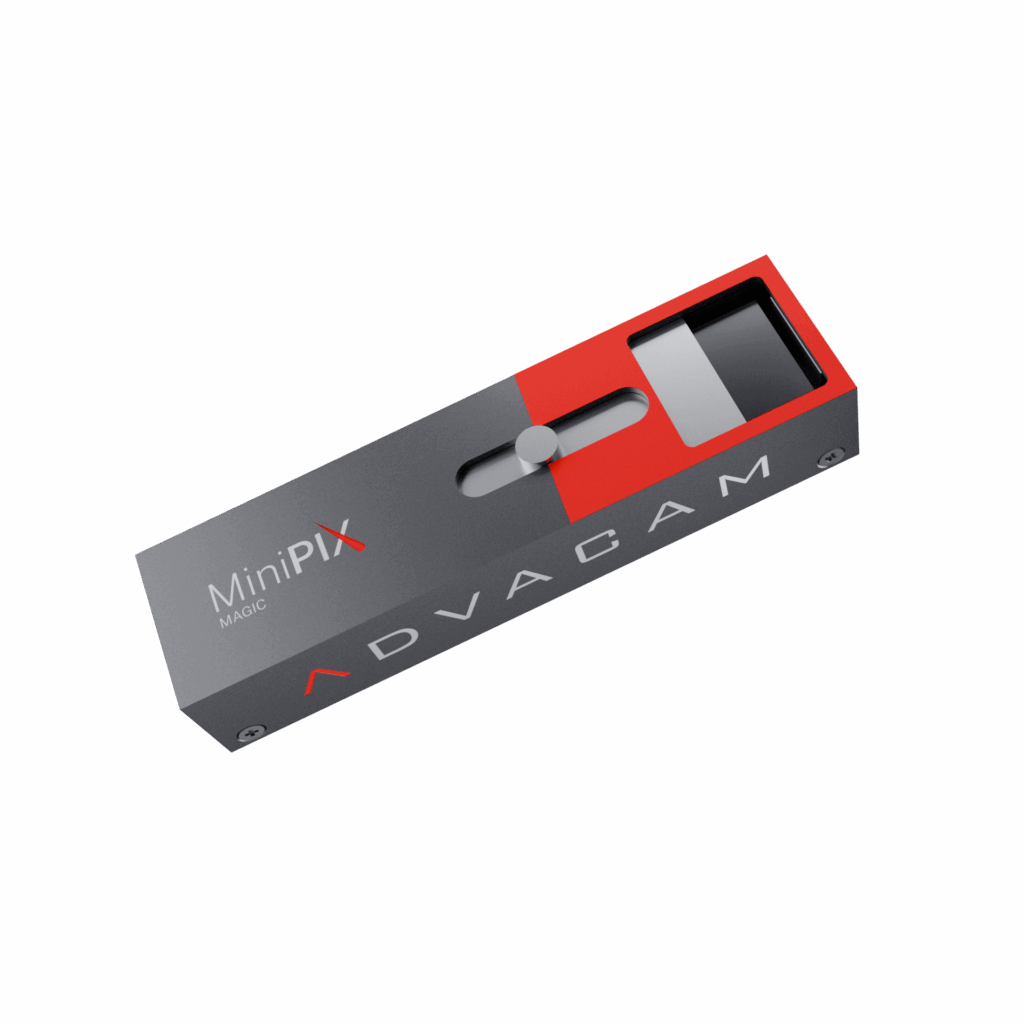

MiniPIX MAGIC

Former name: MiniPIX TPX3

A miniaturized and low-power radiation camera equipped with particle tracking and imaging Timepix3 sensor (256 x 256 square pixels with a pitch of 55 μm). It offers versatility and portability for particle tracking and research.

Show sensors
Request product

Readout chip type: Timepix3
Pixel size: 55 x 55 μm
Dynamic range in one frame: 1022
Dark current: none
Maximum frame rate: 16
Time resolution: 1,6 ns

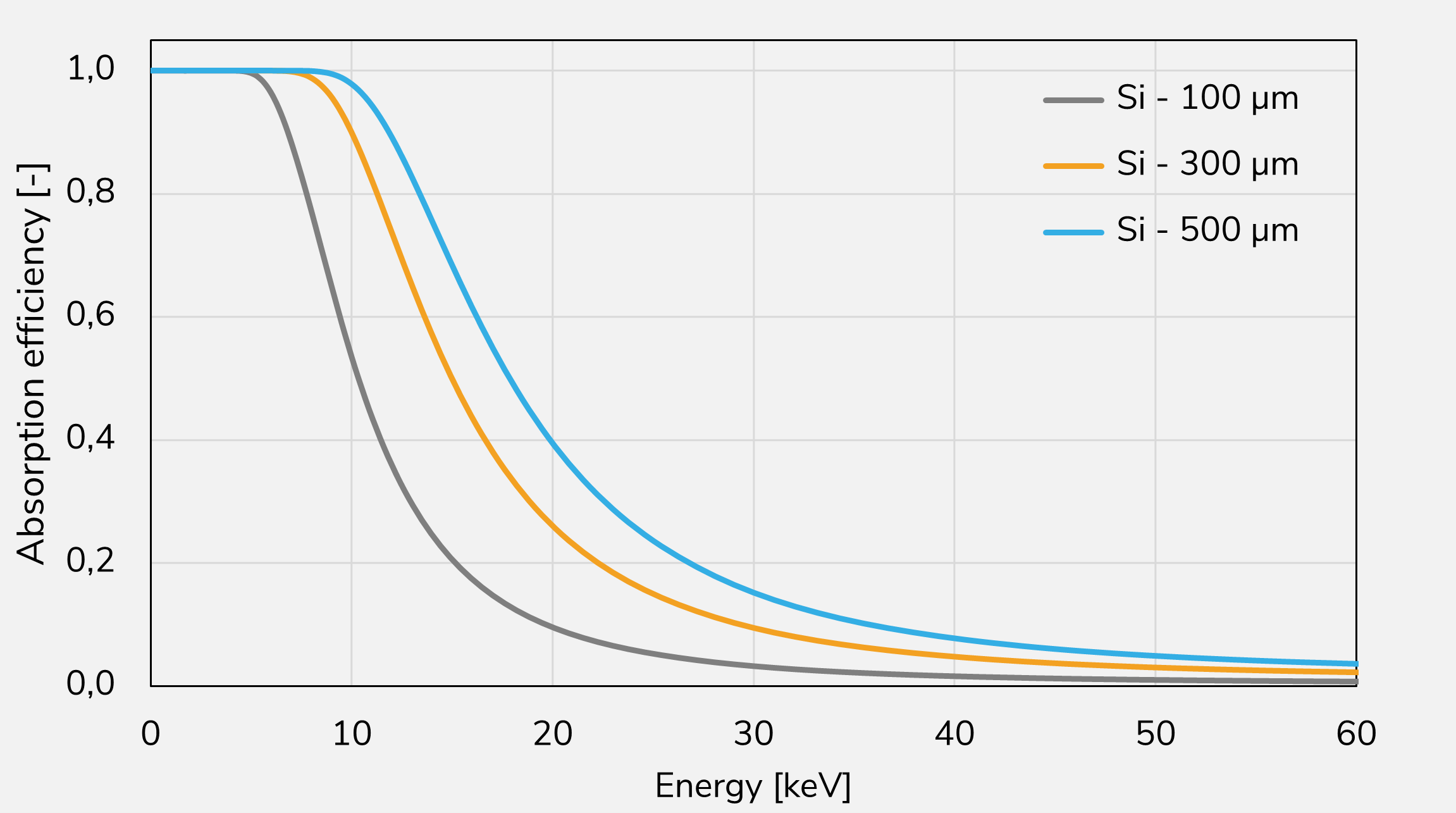

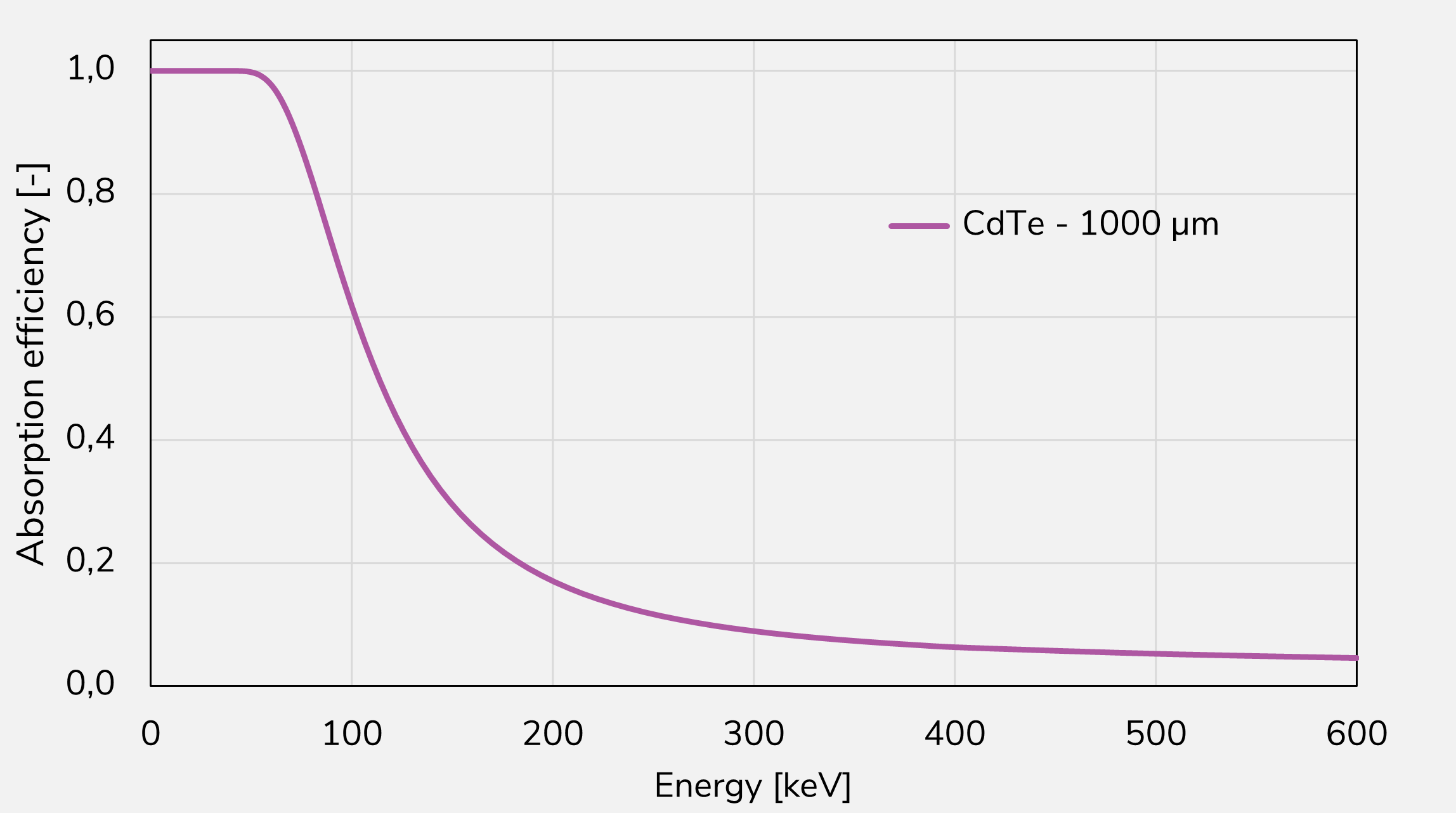

Available sensors: Si, CdTe
Pixel operation mode: Time-over-Threshold, Time-of -Arrival

Dimensions: 80 mm x 21 mm x 14 mm
Sensitive area: 14 mm x 14 mm
Number of Pixels: 256 x 256
Weight: 40 g
Connectivity: USB type Micro-B
Software: PIXet Pro

Product description

Miniaturized and low-power radiation camera with state of the art Timepix3 chip

The MiniPIX MAGIC detector is aquipped with Timepix3 chip, which is position, energy, and time-sensitive. This means it digitally registers its position, energy, time of arrival, and track shape of every single particle that comes in contact with the sensor. Other information can be calculated form this data, such as particle type, direction of flight, its energy, or charge.

The device collects data in pixel mode, which means each hit is read out immediately at a maximal rate of 2.3 million hit pixels per second. This makes the MiniPIX MAGIC detector ideal solution for all particle tracking aplications.

Where can you use the MiniPIX MAGIC photon-counting camera? For material analysis or radiation monitoring.

  • Spectral X-ray imaging: X-ray fluorescence imaging, X-ray radiography (low flux)
  • Crystallography: Energy dispersive XRD, SAXS, or WAXS. We can analyse even thick samples or internal structures.
  • Radiation monitoring: Particle type sorting, spectroscopy, directional sensitivity
  • Particle physics research.

The MiniPIX MAGIC detector is connected via USB cable. The device has a microUSB port. The PIXet Pro software is provided with the device – it is used to operate the detector and collect and analyse data. Plugins for advanced functions are available.
