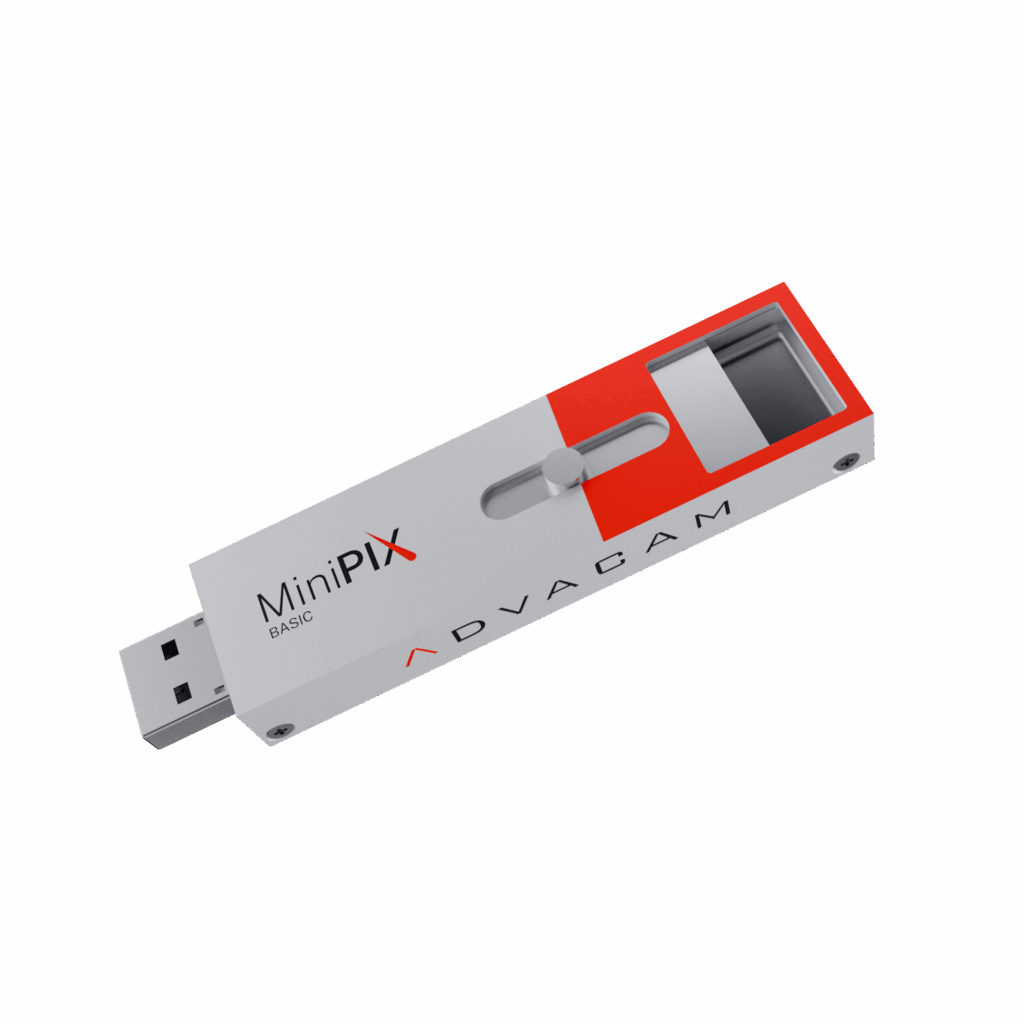

MiniPIX BASIC

Former name: MiniPIX TPX Standard

A basic model of a miniaturized and low-power radiation camera incorporating a single Timepix detector (256 x 256 pixels with a pitch of 55 μm) and a sensor according to customer preference.

Show sensors

Request product

Readout chip time:	Timepix
Pixel size:	55 x 55 μm
Sensor resolution:	256 x 256 pixels
Dynamic range in one frame:	11 810
Dark current:	none
Maximum frame rate:	55 fps

Dimensions:	88,9 x 21 x 10 mm
Weight:	30 g
Interface:	USB 2.0 (High-Speed)
Software:	PIXet Pro

MiniPIX Standard Datasheet (20250612)

PIXet Manual

Product description

A standard well established particle counting and tracking camera

The standard MiniPIX BASIC detector incorporates single Timepix detector (256 x 256 pixels with a pitch of 55 μm) with a sensor according to customer preference (standardly 300 μm thick silicon). It is capable of reading up to 55 frames per second (with an exposure time of 1 ms). The Timepix detector is energy sensitive, bringing a new dimension to radiographic images.

The MiniPIX BASIC detector is connected via USB interface. It is controlled in PIXet Pro software, which is provided for free. It runs on all major operating systems (MS Windows, Mac OS and LINUX).

Where can you use the MiniPIX BASIC photon-counting camera? For medical x-ray imaging, material analysis or radiation monitoring.

Crystallography: Energy dispersive XRD, SAXS, or WAXS. We can analyse even thick samples or internal structures
Spectral gamma-ray imaging: Scintigraphy or SPECT, radiography with isotopes
Radiation monitoring: Particle type sorting, spectroscopy, directional sensitivity
Gamma camera: When combined with extra hardware (available upon request)
Compton camera: Gamma-ray imaging based on Compton scattering with special software module for image reconstruction
Particle physics research.
