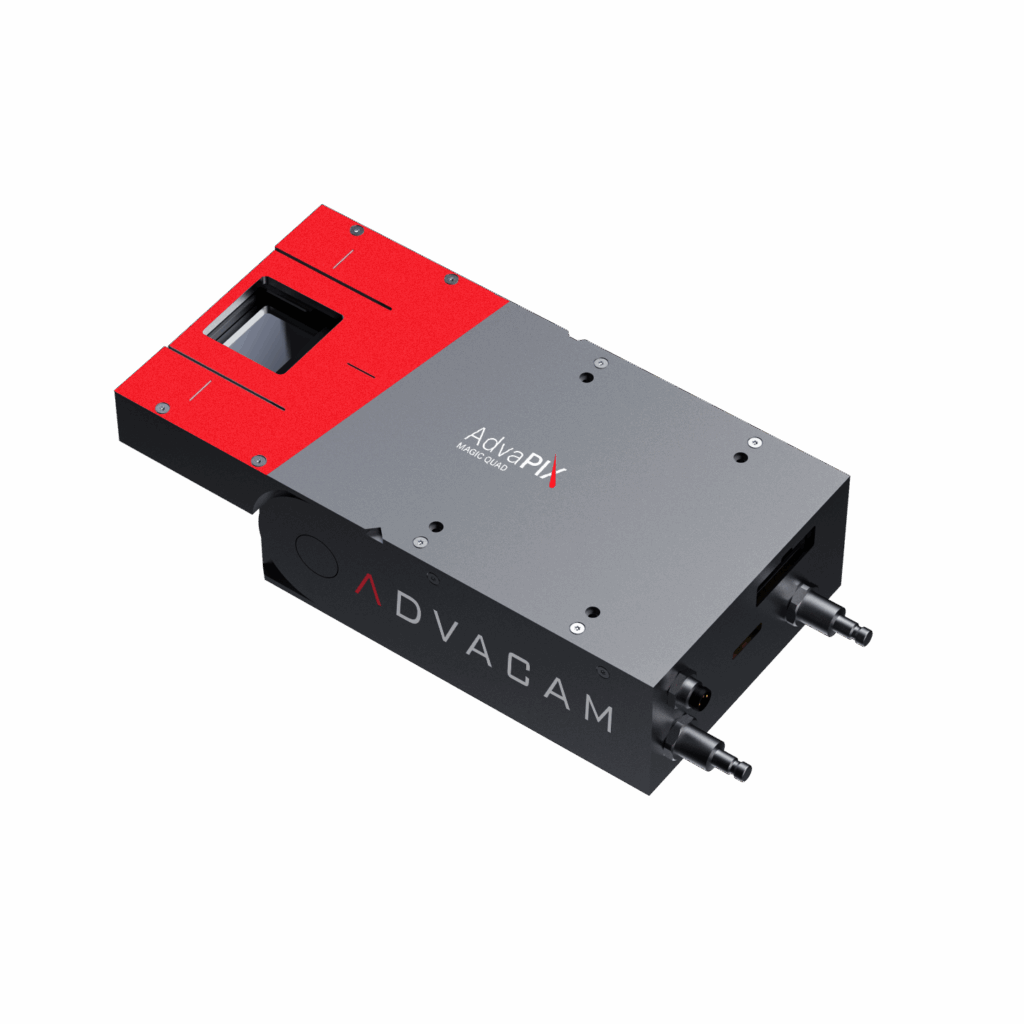

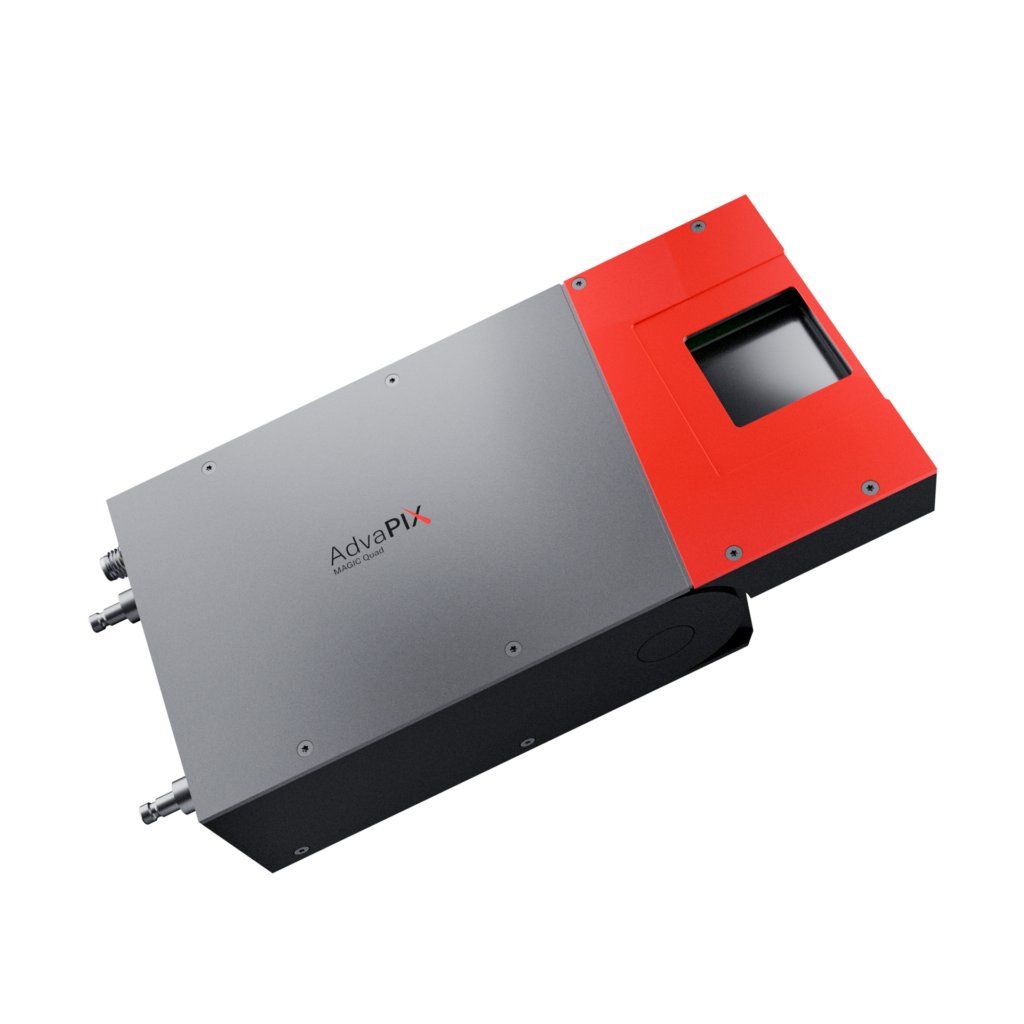

AdvaPIX MAGIC Quad

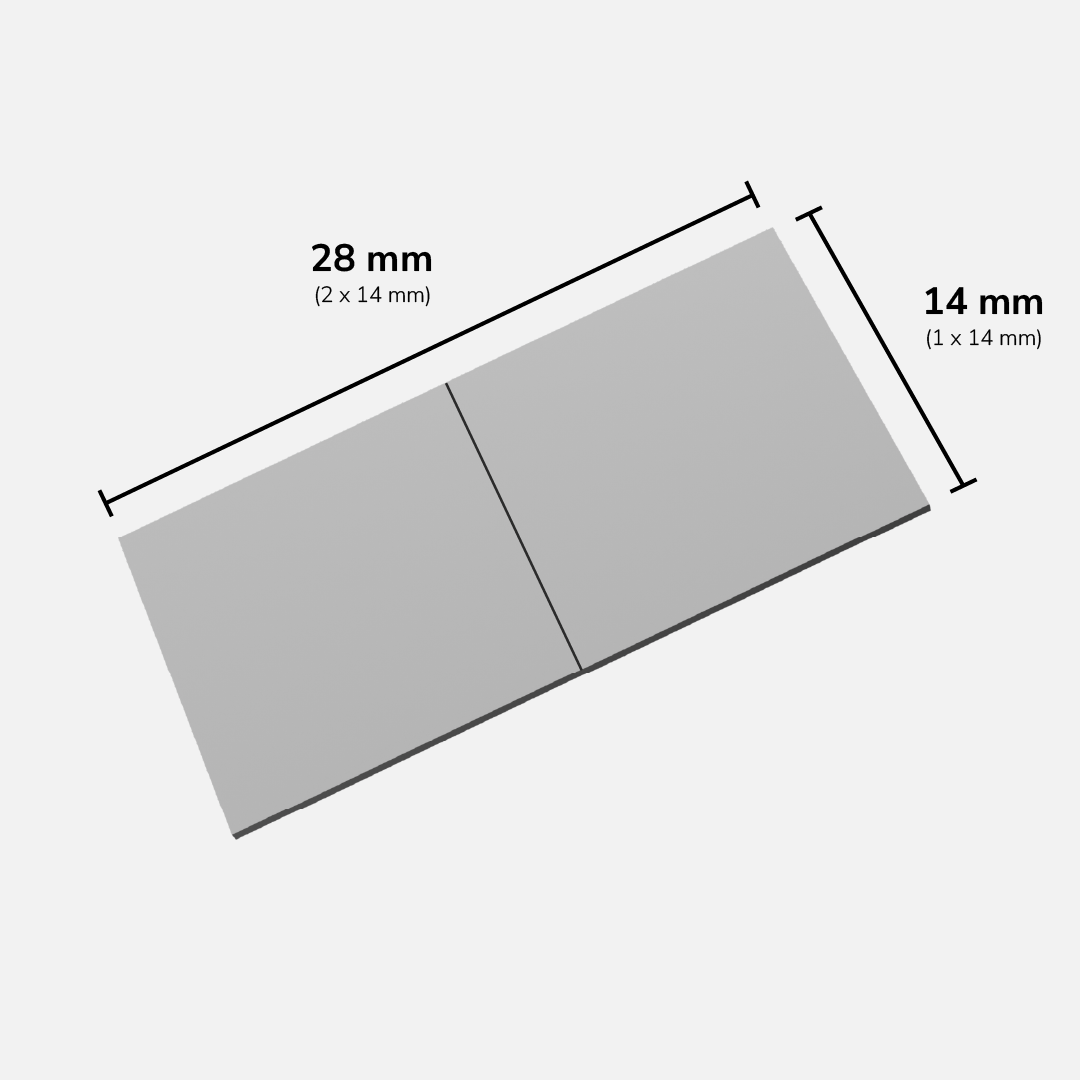

The AdvaPIX MAGIC Quad offers is a two-chip configuration of the detector. The 28 x 14 millimeter sensitive area offers the resolution of 131,072 pixels.

Compared to the regular AdvaPIX with a single chip, this variation delivers a bigger sensitive area to collect more data in a single measurement. This layout offers the best properties for ??

The AdvaPIX MAGIC Quad offers is a square array four-chip configuration of the detector. The 28 x 28 millimeter sensitive area offers the resolution of 262,144 pixels.

Compared to the regular AdvaPIX with a single chip, as well as the two-chip Quad, this variation delivers a bigger sensitive area to collect more data in a single measurement. This layout offers the best properties for ??. It is also available with a hole in the middle to allow for higher x-ray energies.

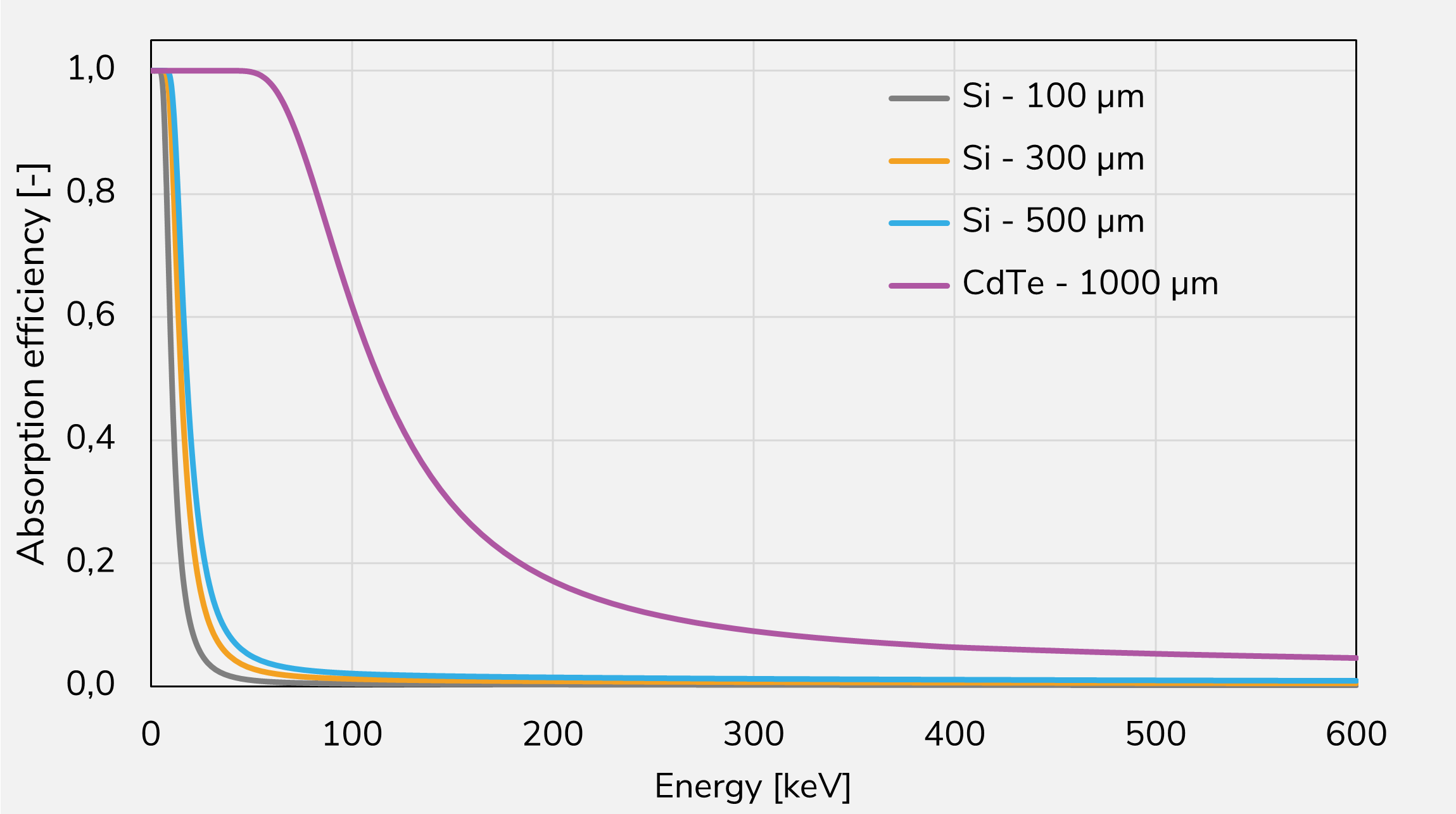

Typical energy range for photons: 3 – 20 keV

Detection efficiency for photons: Nearly 100 % below 5 keV, decreasing rapidly above 10 keV; <10 % efficiency beyond 30 keV.

Typical applications:

Particle tracking

• Electron and X-ray beam monitoring
• Particle-tracking at very low energies (especially “Si 100 no Aluminium coating”)
• Particle identification and differentiation (energetic protons, energetic electrons, low energy electrons, X-rays, neutrons etc.)

Typical industries: research, electron microscopy (Life sciences, biomedical imaging, microelectronics research, materials testing of low-Z materials), and more

Typical energy range for photons: 5 – 40 keV

Detection efficiency for photons: Nearly 100 % below 8 keV, around 50 % at ~15 keV, gradually decreasing toward 30 keV; <10 % efficiency beyond 50 keV.

Typical samples: Light to medium-density materials such as organic samples, polymers, ceramics, and composite structures.

Typical applications:

Particle tracking

• Photon and particle-tracking
• Space and radiation-environment research
• Particle identification and differentiation (energetic protons, energetic electrons, low energy electrons, X-rays, neutrons etc.)

Typical industries: Material science, general laboratory research, space-environment monitoring, Space-radiation and dosimetry experiments, XRD, and more

Typical energy range for photons: 5 – 40 keV

Detection efficiency for photons: Nearly 100 % below 8 keV, around 50 % at ~15 keV, gradually decreasing toward 30 keV; <10 % efficiency beyond 50 keV.

Typical samples: Light to medium-density materials such as organic samples, polymers, ceramics, and composite structures.

Typical applications:

Particle tracking

• Photon and particle-tracking
• Space and radiation-environment research
• Particle identification and differentiation (energetic protons, energetic electrons, low energy electrons, X-rays, neutrons etc.)

Typical industries: General laboratory research, space-environment monitoring, Space-radiation and dosimetry experiments, XRD, and more

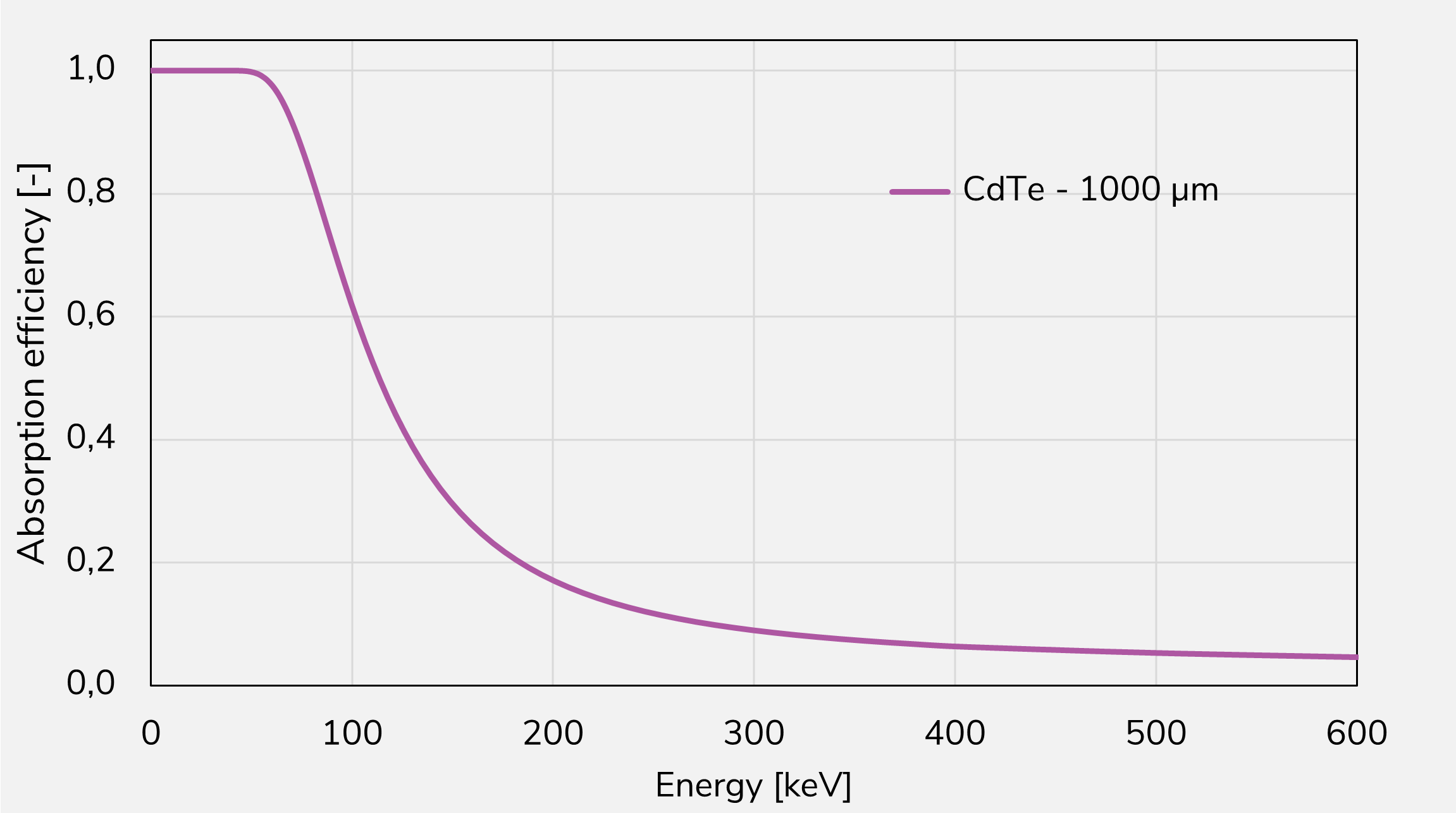

Typical energy range for photons: 20 – 150 keV

Detection efficiency for photons: Nearly 100 % up to about 80 keV, remaining above 50 % around 120 keV, and gradually decreasing beyond 150 keV; still responsive at several hundred keV.

Typical samples: Dense materials such as metals, minerals, ceramics, and thick composite structures.


Typical applications:

Particle tracking

• Material analysis and spectroscopy requiring efficient high-energy photon detection
• Suitable for high-energy photon and particle-tracking experiments

Typical industries: Materials characterization, mining and geology, nuclear research, and scientific instrumentation, XRD, XRF, and more

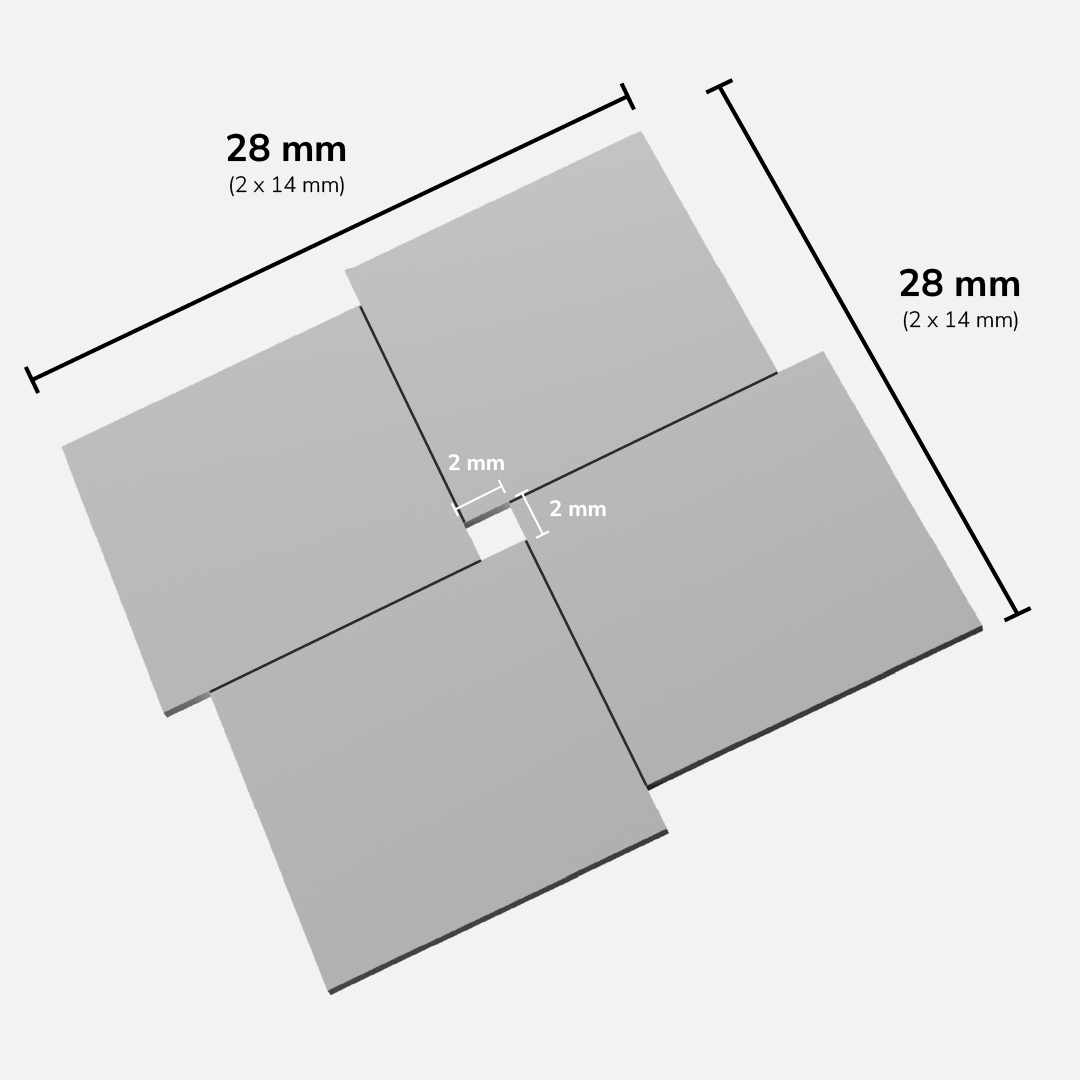

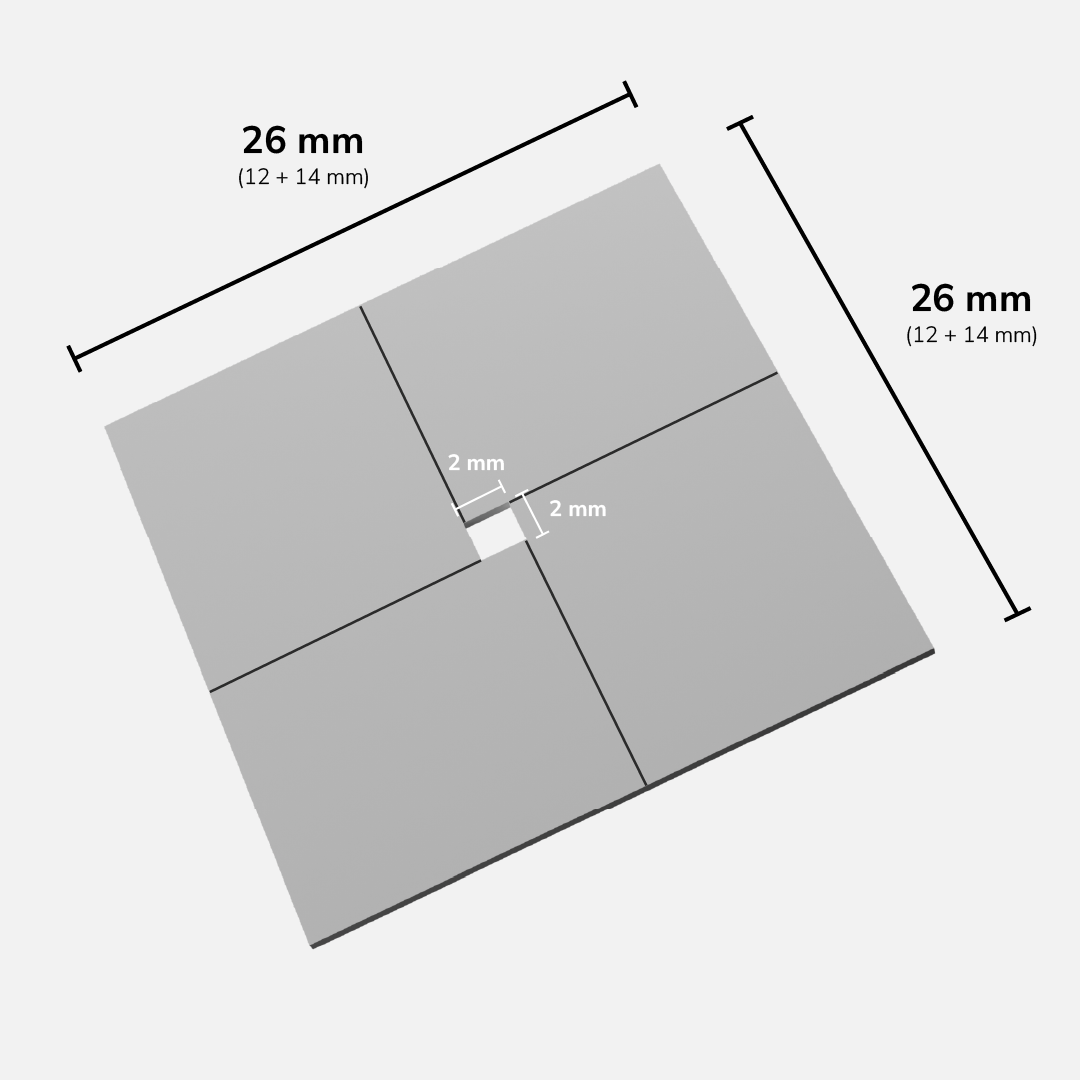

The AdvaPIX MAGIC Quad offers is a square array four-chip configuration of the detector. The "hole" variation has an opening in the center. This is a modification for methods where the user wants to use a focused beam of high intensity, such as x-ray diffraction. The gap ensures that the sensitive area is not damaged.

The 28 x 28 millimeter array offers the resolution of 262,144 pixels. This variation delivers a bigger sensitive area to collect more data in a single measurement. This layout offers the best properties for XRD and other methods used for material analysis.
